Capabilities
Extended Range Defense: Provides high-fidelity detection and engagement coverage for large-scale facilities and critical sensitive sites.
Advanced Target Capacity: Capable of searching for up to 500 targets and tracking up to 6 targets simultaneously (expandable to 24 with four-faced radar).
High-Output Sustained Engagement: Designed for a maximum engagement time of 500 seconds, allowing for prolonged defense against multiple threats.
Intelligent Situational Awareness: Client application offers real-time video display and historical data access for complete situational visibility.
Technical Highlights
Radar Technology: Equipped with a high-performance X-band (9.2-9.8GHz) AESA radar.
Neutralization Distance: Effective neutralization at distances exceeding 1 km.

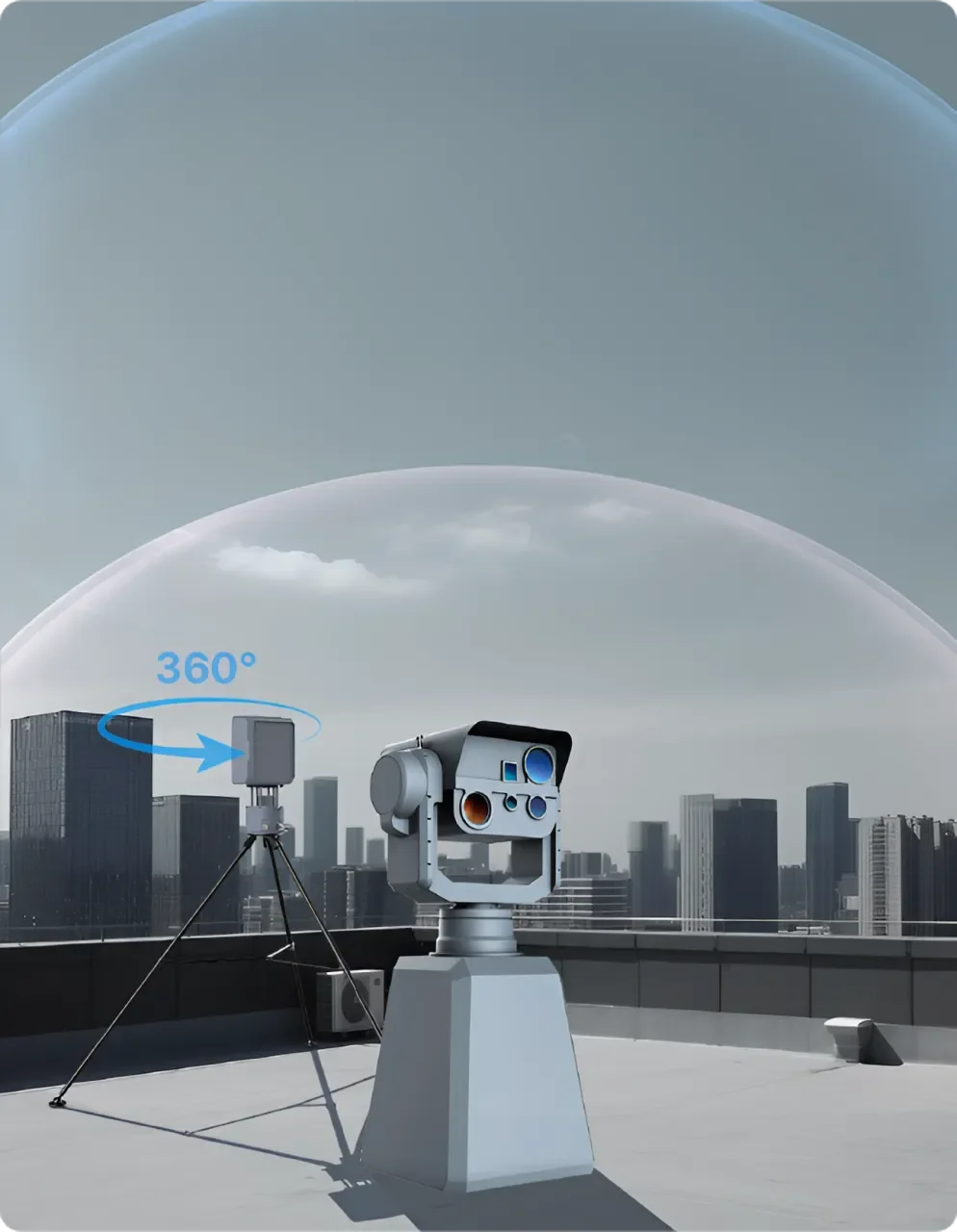

Scan Method: Supports 360° full-azimuth detection through mechanical or four-faced electronic scanning.
Power Supply: Robust AC 380V industrial power input for high-capacity defense.
Tracking Accuracy: Precision locking with an accuracy of (≤ 15μrad) (RMS).
Advantages
Superior Detection Performance: Detects micro quadcopter UAVs at ranges up to 5 km and fixed-wing drones up to 10 km.
Industrial-Grade Reliability: Rated IP66 and designed to operate in extreme temperatures ranging from -40^{\circ}C to +55^{\circ}C.
Advanced Thermal Management: Uses active water cooling for the directed energy unit to maintain peak power during continuous operations.
Ultra-Fast Transition: The fastest engagement transition time in the series at only 2–5 seconds between targets.

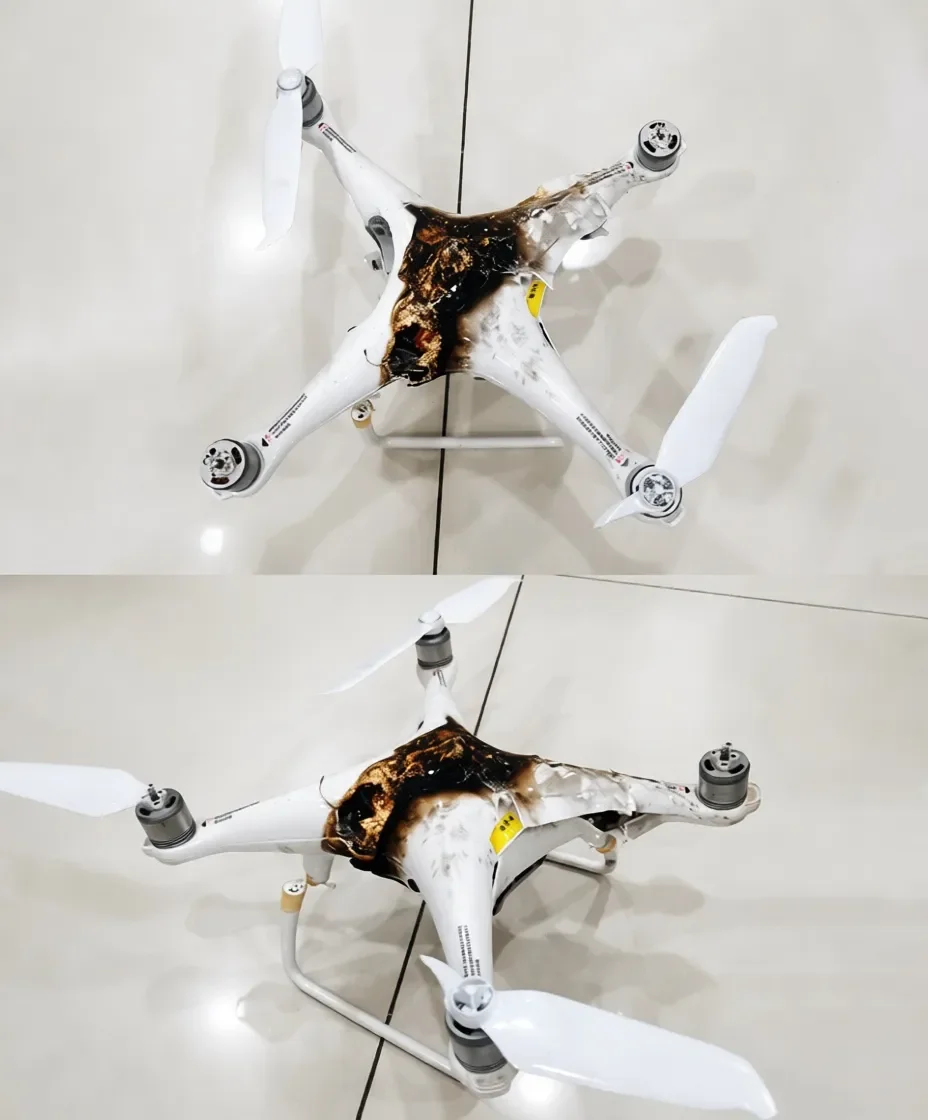

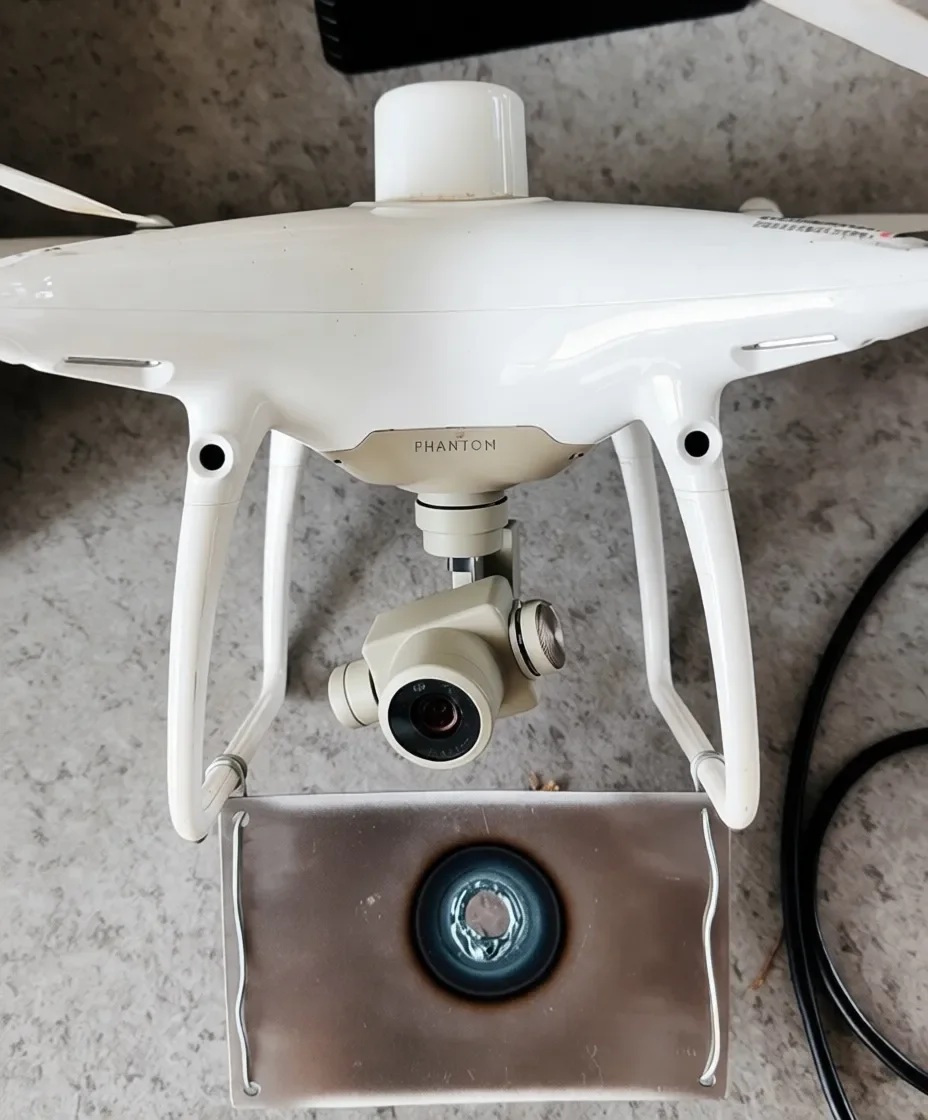

Practical Neutralization (Field-Tested)

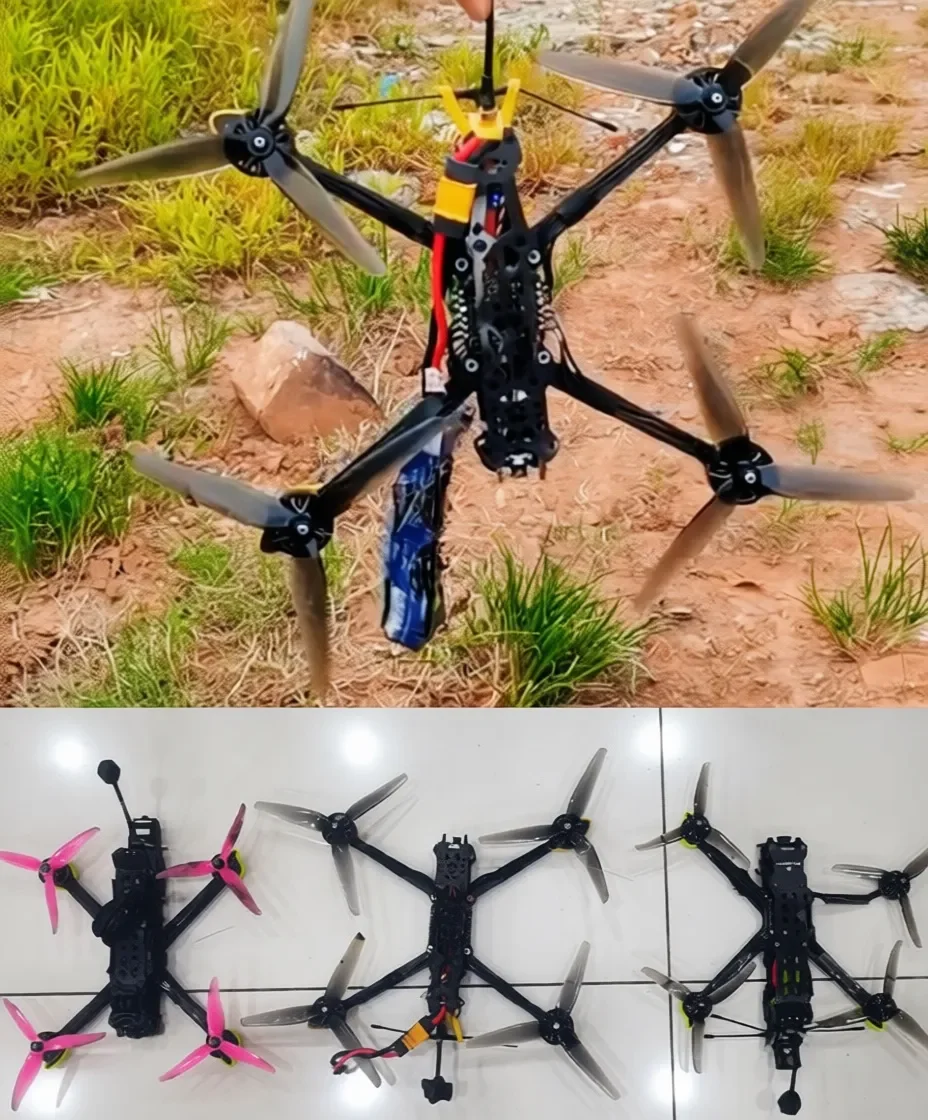

High-Speed FPV Drones
Autonomous & Fiber-Optic Controlled UAVs
Low-Slow-Small (LSS) Threats
Applications (Sectors)

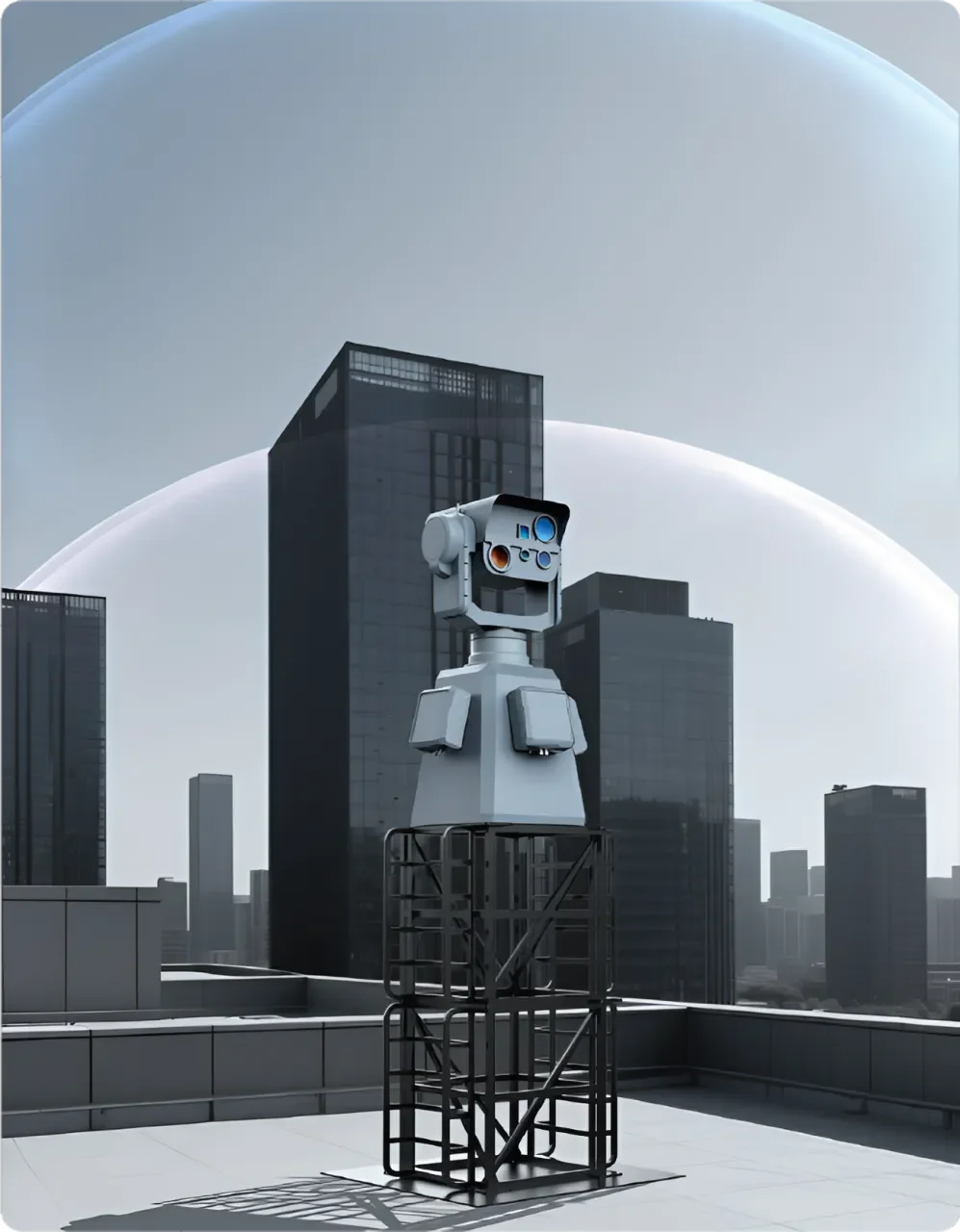

Critical Infrastructure Protection: Permanent security for power grids, energy hubs, and water treatment facilities.
Airports & Maritime Ports: Securing large-scale transportation hubs from unauthorized drone activity.
Strategic Government Facilities: Long-term airspace shielding for sensitive official sites.
