B&W battery.case P908.16

$0.00

High-Capacity Specialized Battery Transport Trolley

The battery.case P908.16 is the heavy-duty flagship of the B&W battery transport series, specifically designed for the safe handling of larger or multiple lithium-ion batteries. This model combines extreme fire safety with mobile convenience, featuring an integrated trolley system for effortless transport of heavy loads. It is fully certified for both intact and defective batteries, ensuring that even in the event of a thermal runaway, the environment remains protected and the fire stays contained within its robust multi-layered structure.

Color:

High-Capacity Specialized Battery Transport Trolley

The battery.case P908.16 is the heavy-duty flagship of the B&W battery transport series, specifically designed for the safe handling of larger or multiple lithium-ion batteries. This model combines extreme fire safety with mobile convenience, featuring an integrated trolley system for effortless transport of heavy loads. It is fully certified for both intact and defective batteries, ensuring that even in the event of a thermal runaway, the environment remains protected and the fire stays contained within its robust multi-layered structure.

Features

  • Patented Automatic Fire Containment: An advanced safety mechanism that automatically seals the internal metal chamber upon detecting extreme heat, effectively locking fire and hazards inside.

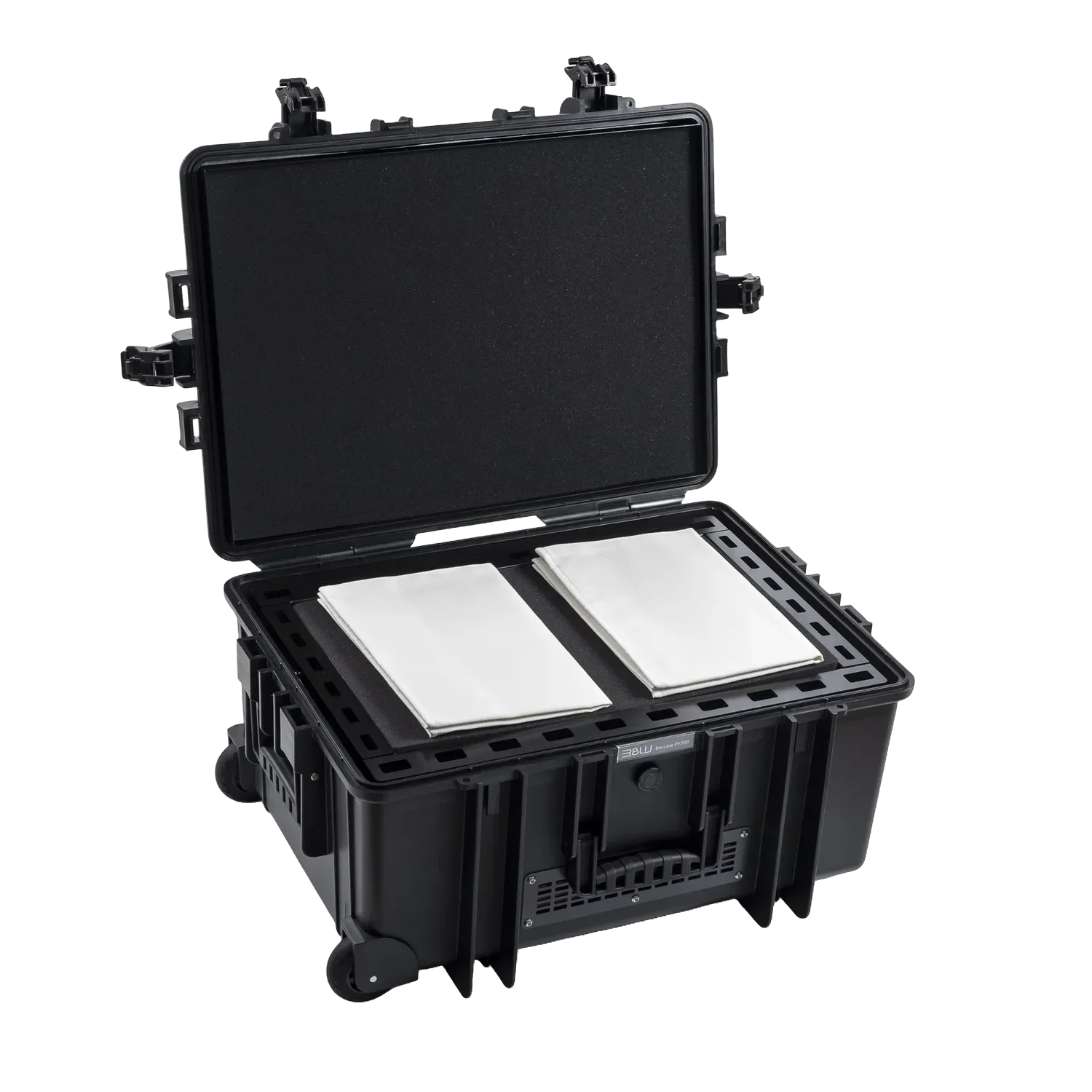

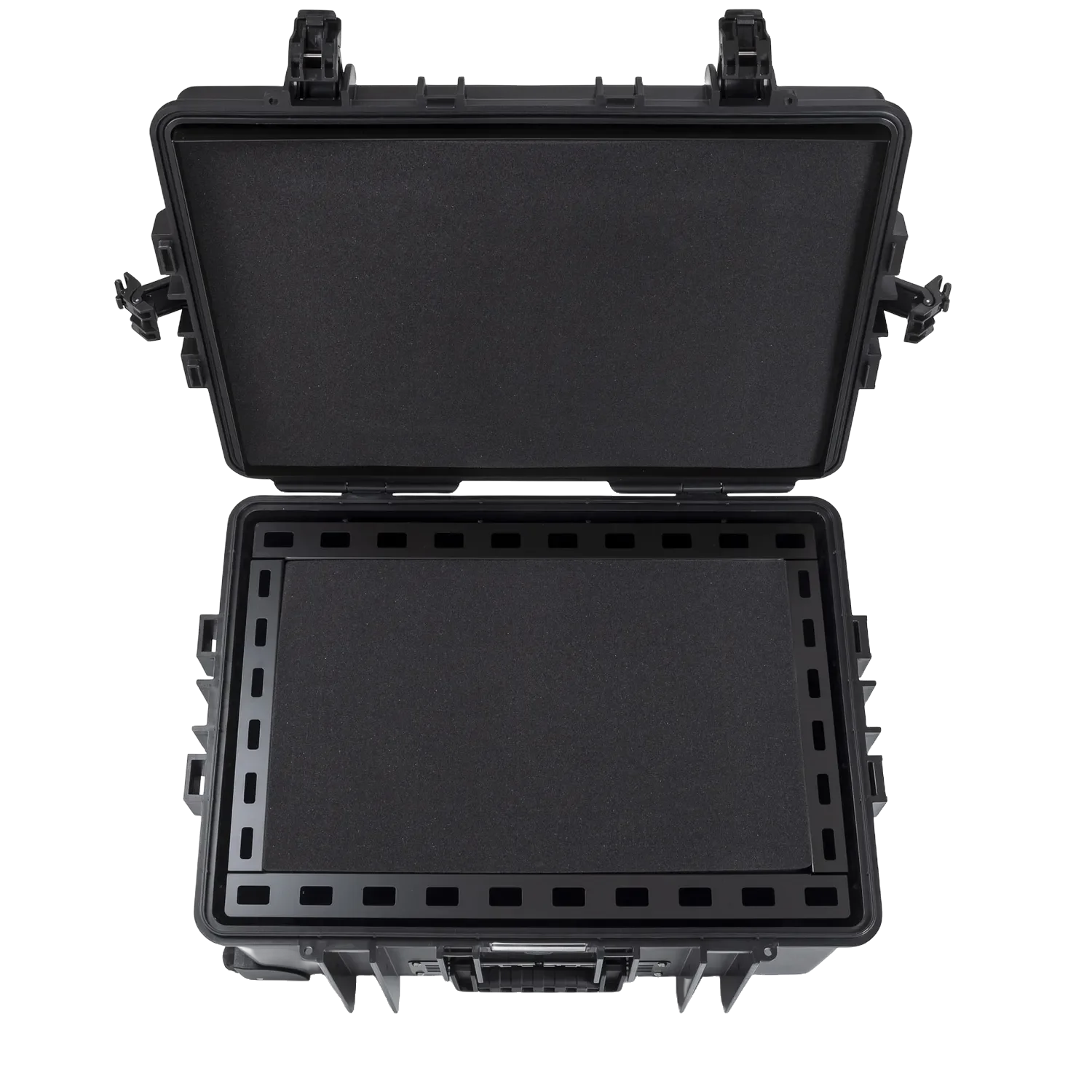

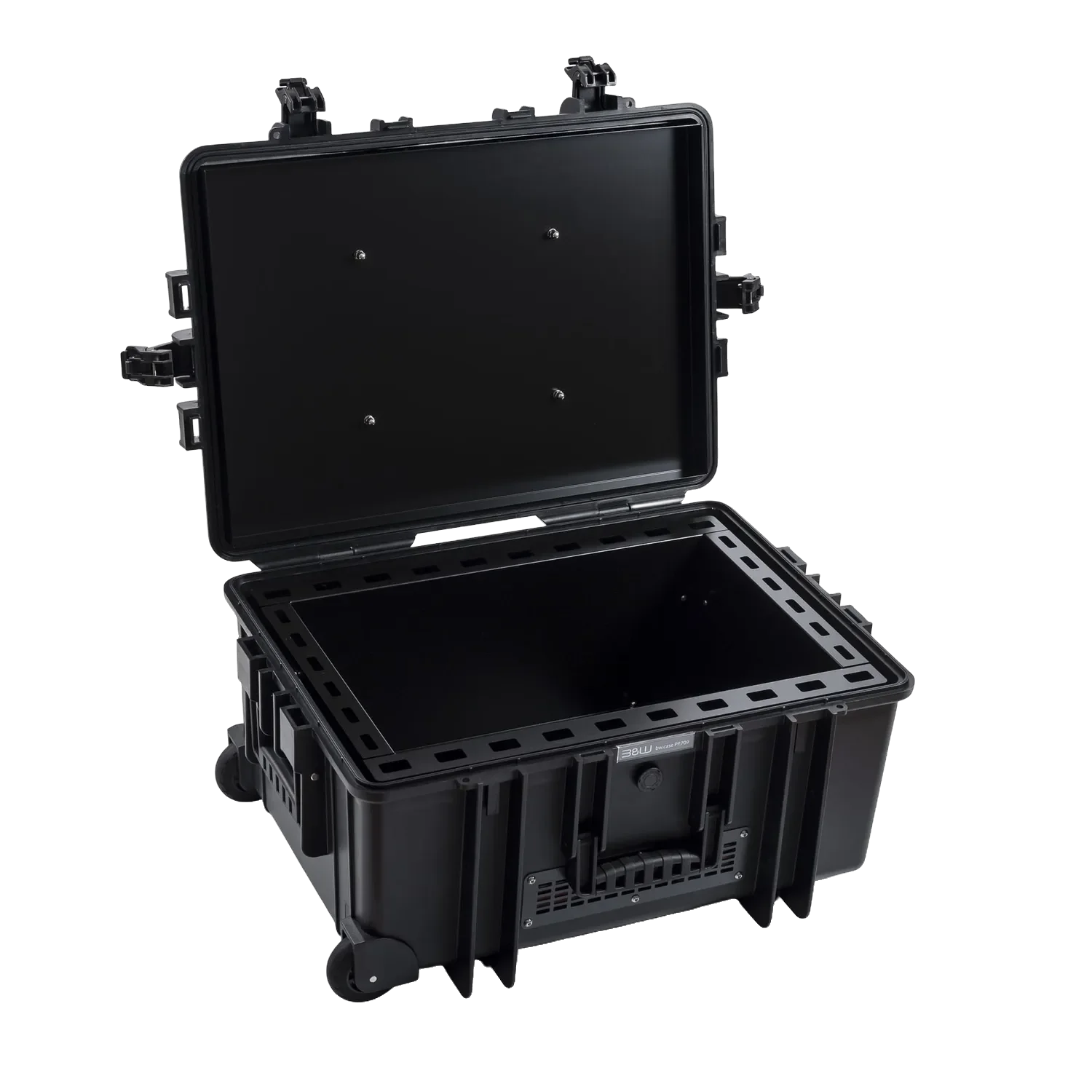

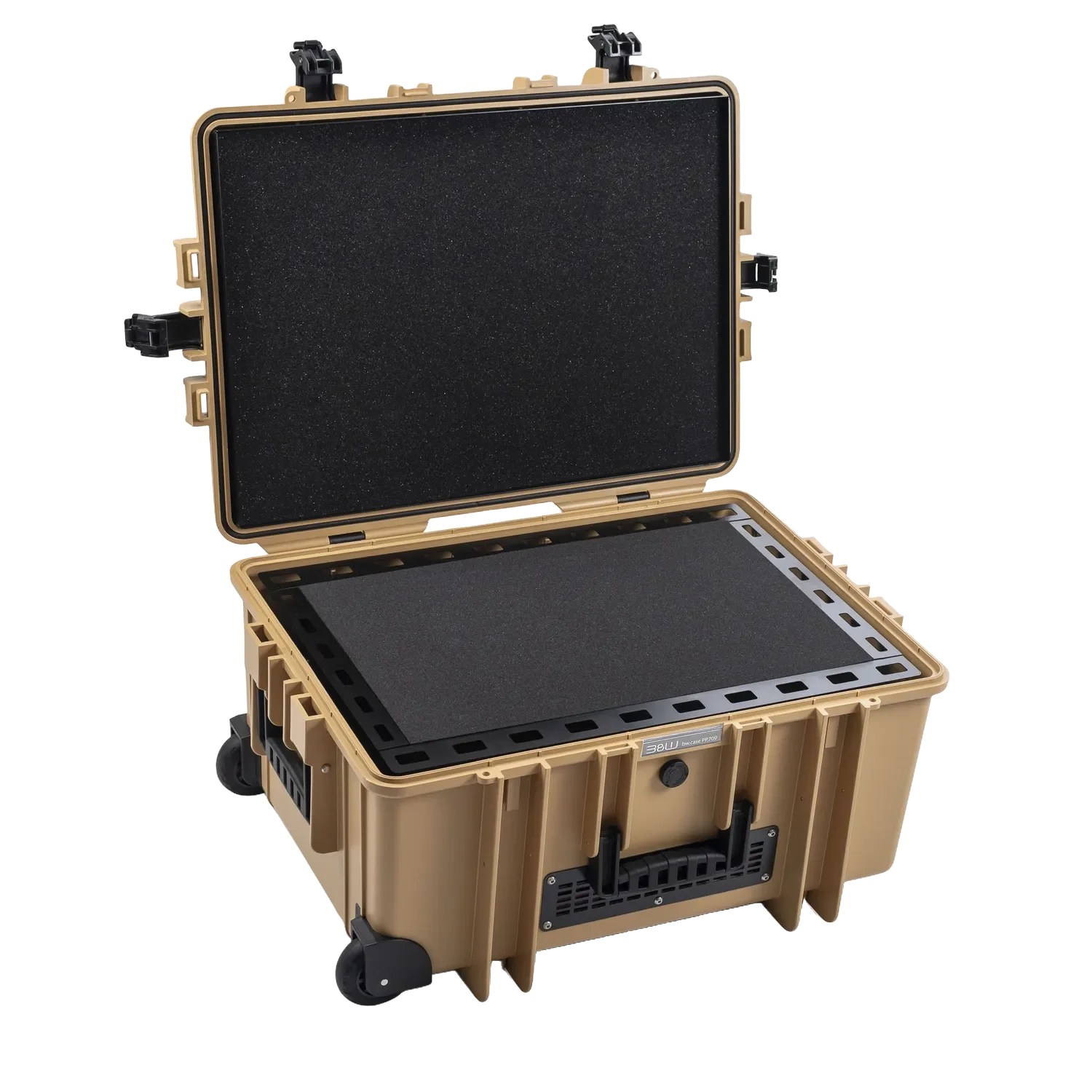

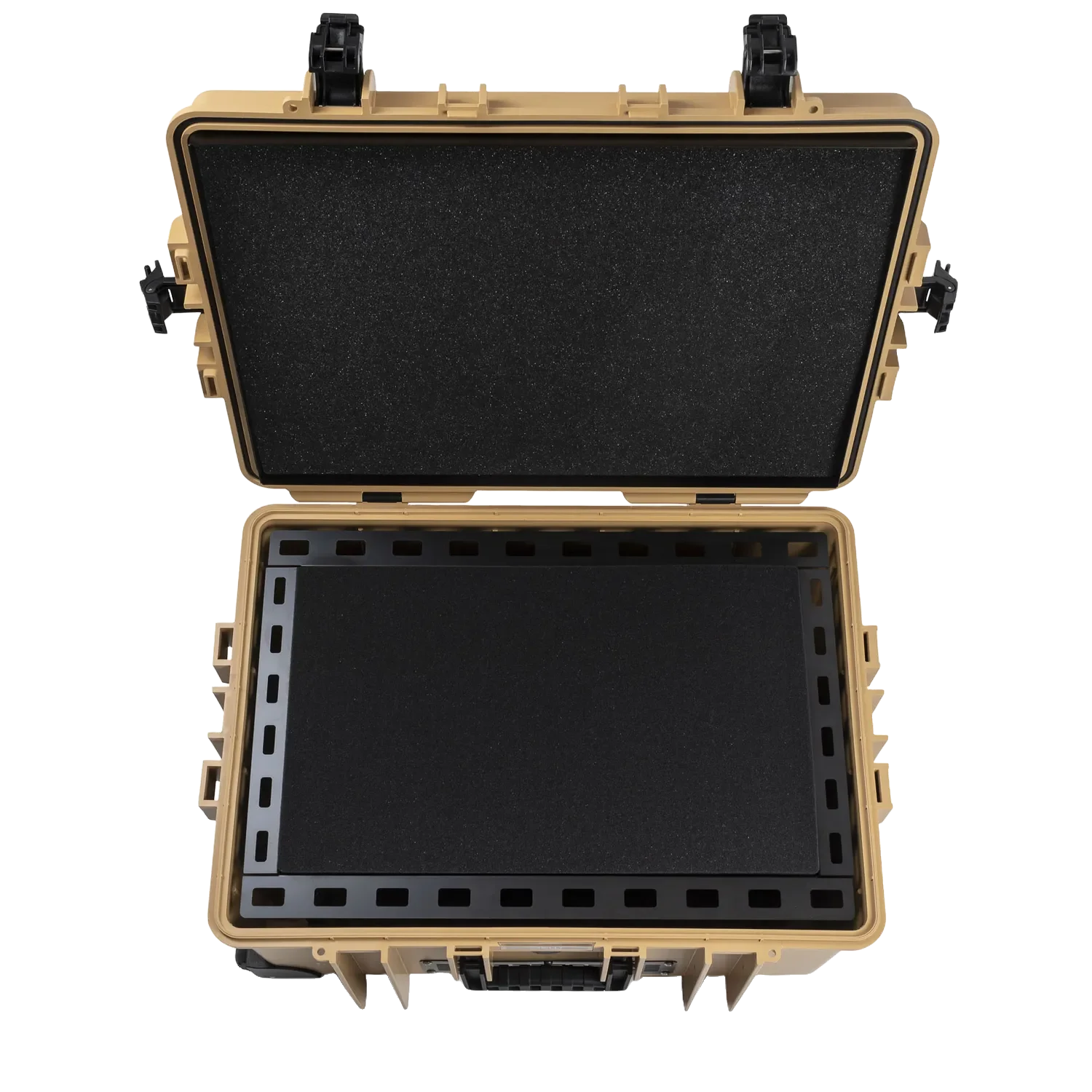

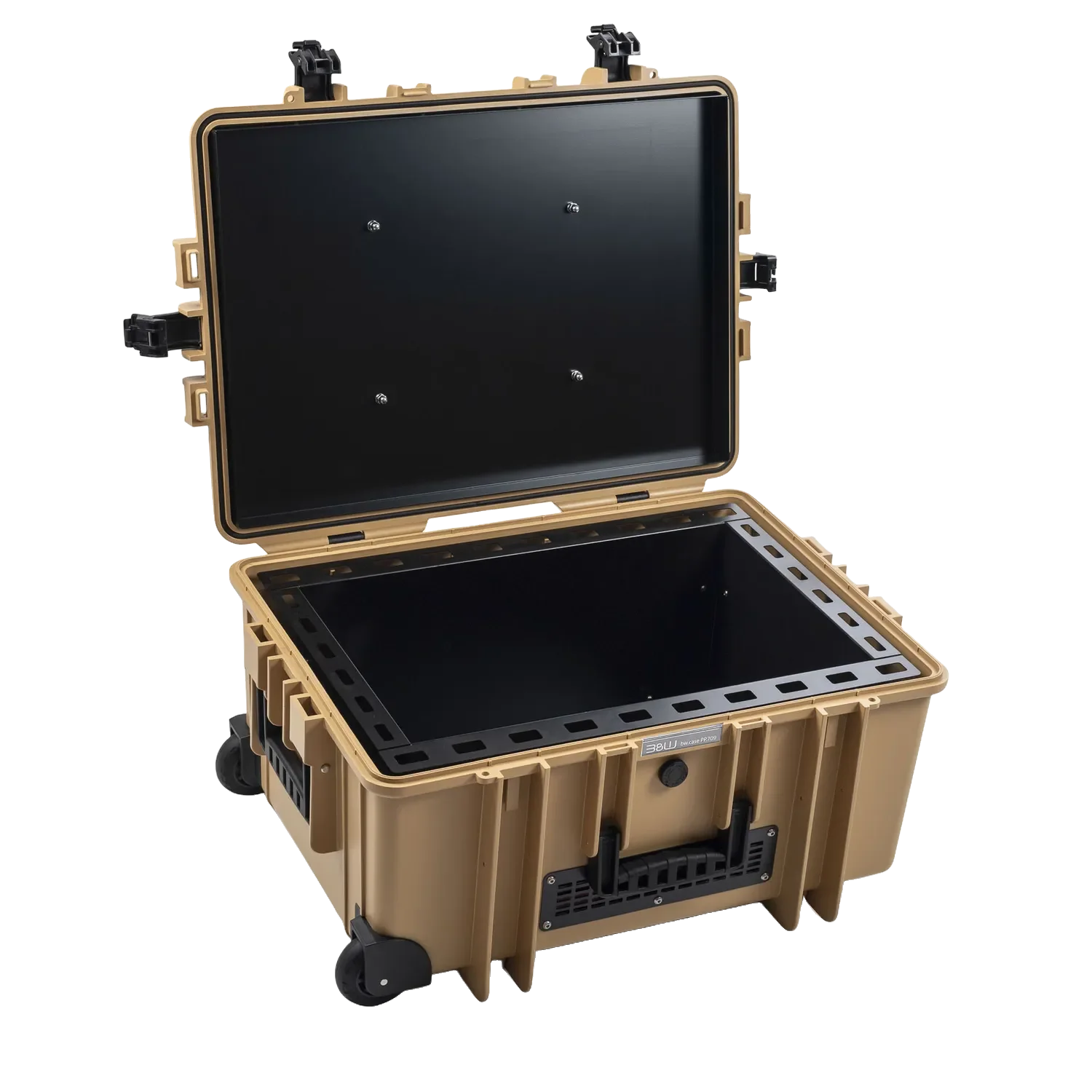

  • Large-Scale Protective Chamber: Features a high-quality plastic outer shell with a spacious internal metal protective chamber for maximum isolation.

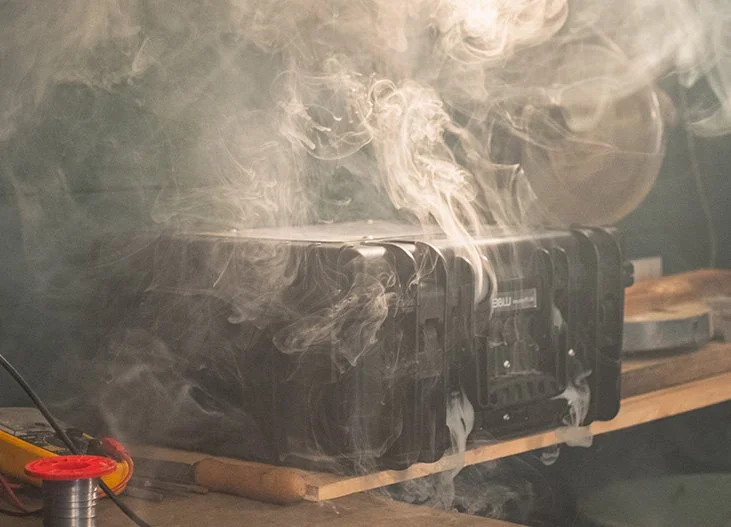

  • Integrated Gas & Soot Filtration: Uses a built-in activated carbon filter to neutralize hazardous gases and minimize soot release during an internal battery event.

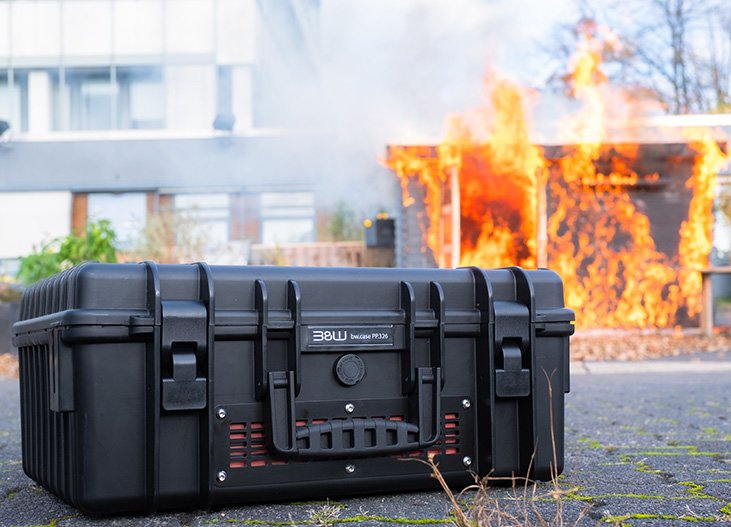

  • Proven Thermal Shielding: Real-world tests confirm that the outer shell stays below 100°C during an internal fire, preventing secondary damage to personnel or surroundings.

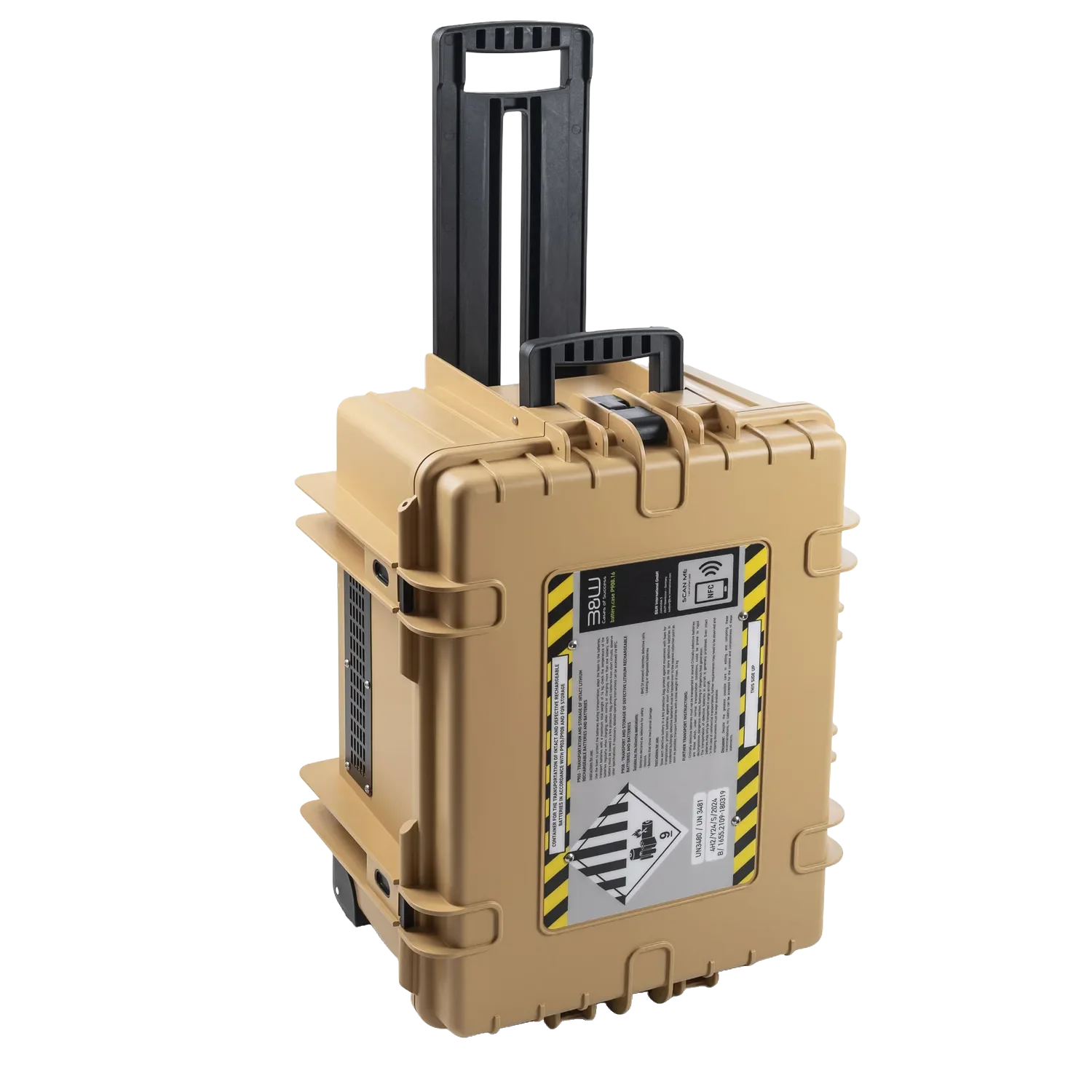

  • All-Terrain Mobility: Equipped with smooth-running wheels and a telescopic handle, making it a "Trolley" style case for easy relocation of heavy battery equipment.





Technical Specifications

  • Article Type: Battery Transport Case (Trolley).

  • Maximum Payload: 16 kg.

  • Outer Dimensions: 660 mm (Length) x 490 mm (Width) x 335 mm (Depth).

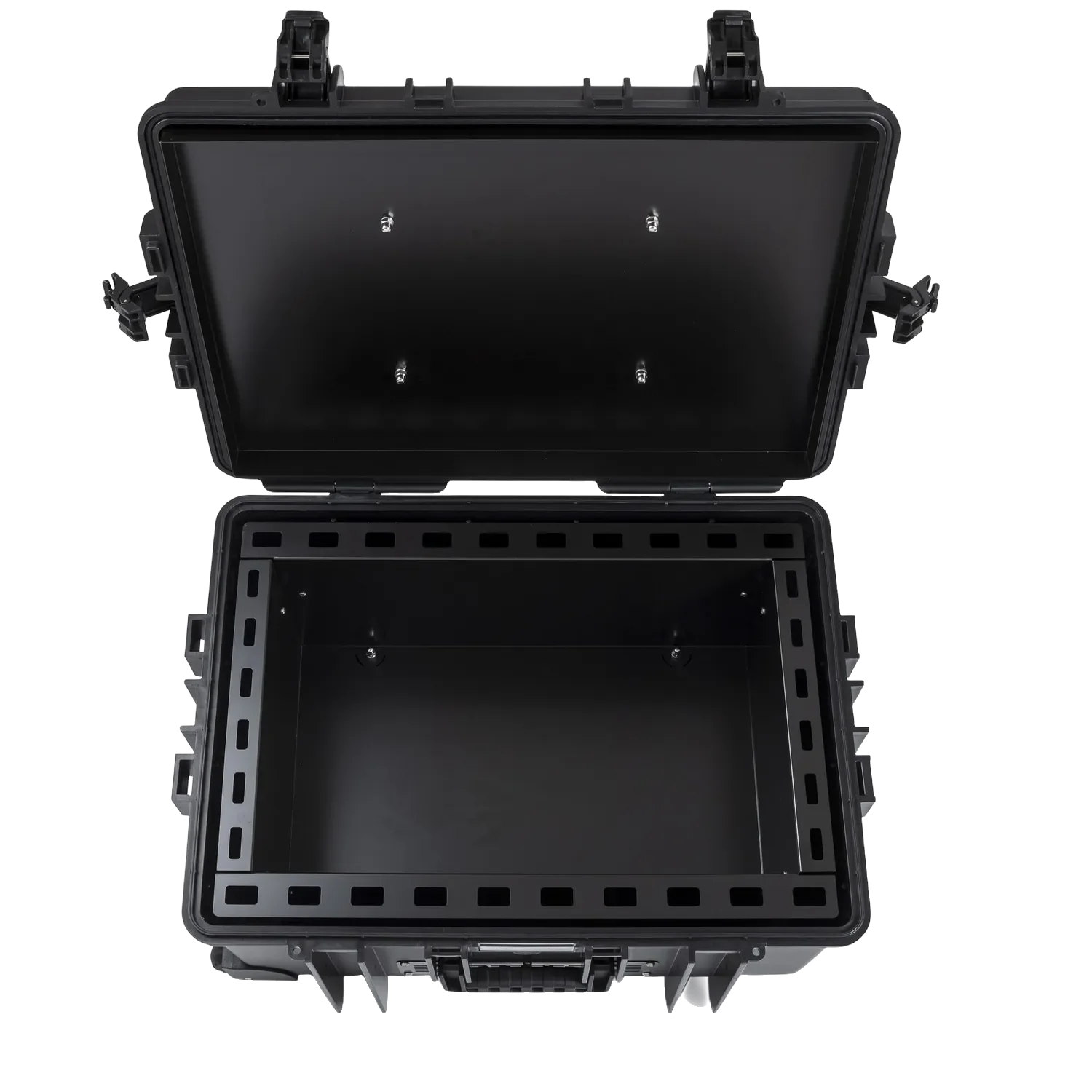

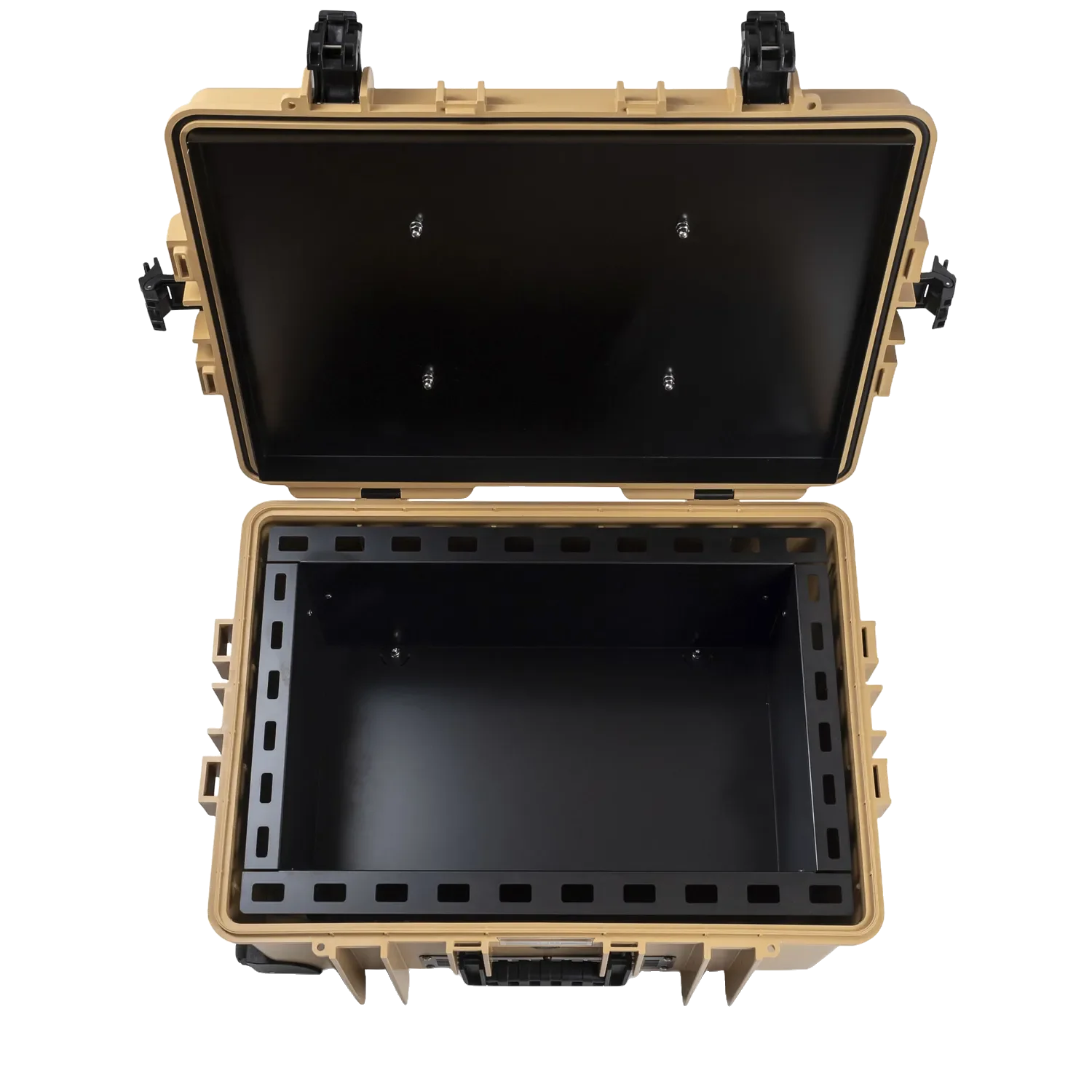

  • Inner Dimensions (Loading Space): 500 mm (Length) x 314 mm (Width) x 243 mm (Depth).

  • Product Weight: 18.2 kg.

  • In-Case Charging: Not Supported (Manual handling required).

  • Available Colors: Black, Desert Tan.

  • Special Features: Telescopic handle, integrated wheels, pressure-balancing valve.




Advantages

  • Certified for Public Roads: Officially approved hazardous goods packaging (P903 and P908) for transporting even damaged or defective lithium batteries.

  • Superior Capacity: The highest payload capacity in the series, designed to handle up to 16 kg of battery weight.

  • Extreme Environmental Resistance: Waterproof, dustproof, and temperature-resistant, ensuring performance in the most demanding outdoor or industrial conditions.

  • Stackable & Secure: Features a stackable design for efficient storage and includes two eyelets for padlocks to prevent unauthorized access.



Applications (Sectors)

  • Industrial Energy & Maintenance: Safe transport of heavy-duty power tool batteries and backup units.

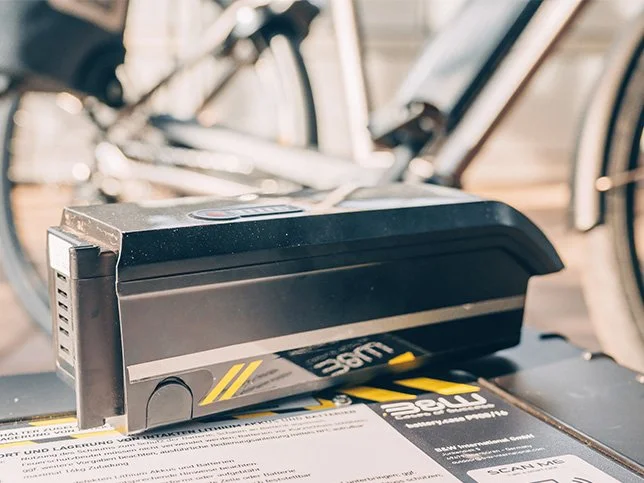

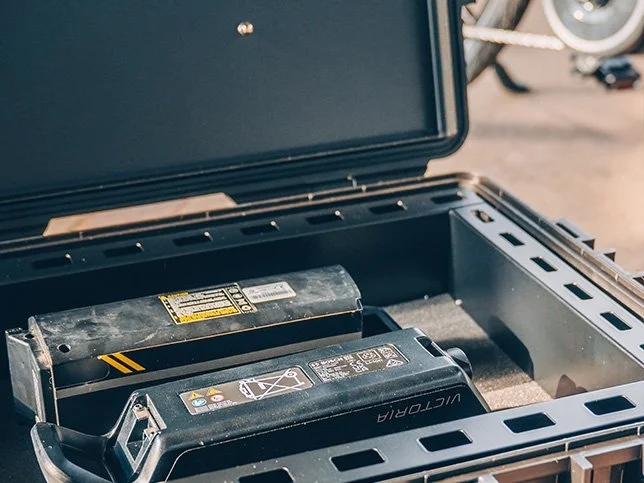

  • E-Mobility Service: Handling and shipping large EV modules and high-capacity e-bike batteries.

  • Logistics & Emergency Services: Reliable containment and transport of hazardous or damaged large-scale lithium cells.

  • Infrastructure & Energy: Protecting critical assets by safely housing large-capacity storage batteries during transit.

  • Defense & Security: Robust protection for specialized battery packs used in high-tech security equipment.
