Hunter Pro SHH110

$0.00

Enhanced FPV Jammer

Hunter Pro is a portable integrated detection and countermeasure device specifically designed for FPV drones. It provides timely alerts by detecting FPV video transmission and remote control signals. Equipped with an FPV analog video reception module, it can also retrieve real-time footage from hostile FPV drones.

Enhanced FPV Jammer

Hunter Pro is a portable integrated detection and countermeasure device specifically designed for FPV drones. It provides timely alerts by detecting FPV video transmission and remote control signals. Equipped with an FPV analog video reception module, it can also retrieve real-time footage from hostile FPV drones.

Capabilities

1. Detection & Early Warning Provides early alerts by identifying FPV drone video and control signals. In the event of a system malfunction, a fault icon is displayed on the screen for troubleshooting.

2. FPV Video Interception Supports real-time reception of analog FPV transmissions at 1.2GHz (1.06–1.36GHz) and 5.8GHz (4.9–5.9GHz). This allows continuous monitoring of intruding FPV video feeds.

3. Countermeasure & Disruption Features an FPV jamming enhancement module covering the 300–1100MHz frequency range with 100W output power. It uses digital baseband signal generation to optimize interference and neutralize control links effectively.

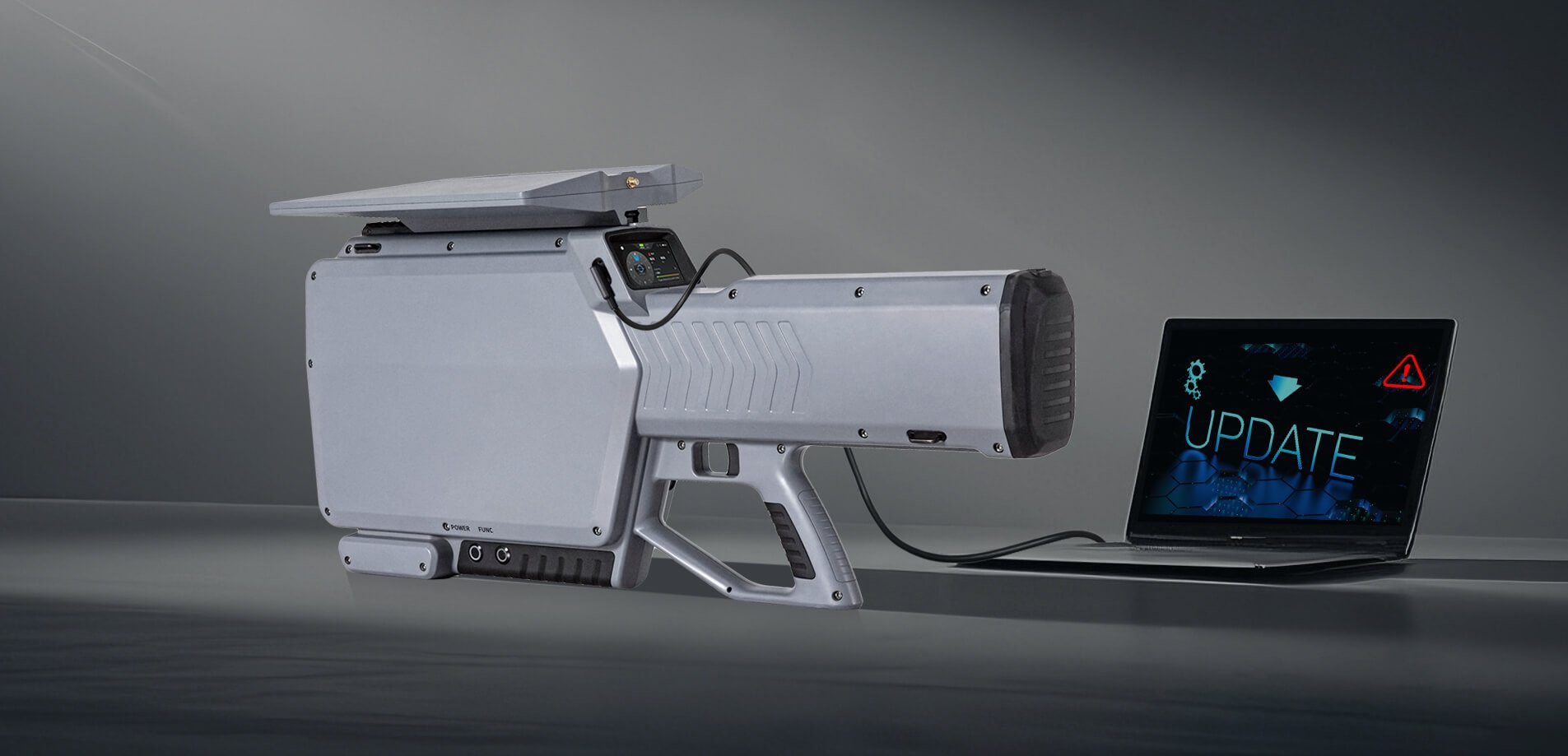

4. Fault Management Users can retrieve system logs and submit them to technical support for diagnostics and troubleshooting directly from the device.

Technical Specifications (Detailed)

  • Product Model: SHH110 - Hunter Pro

  • Operating Frequency (Detection): * FPV Video: 1.2GHz (1.06–1.36GHz) & 5.8GHz (4.9–5.9GHz)

    • Remote Control Signals: Full-band support (SDR-based)

  • Jamming Frequency Range: 300MHz to 6GHz (Full Band)

  • FPV Jamming Power: 100W (specifically for 300–1100MHz range)

  • Jamming Distance: Up to 3 km (depending on environmental conditions)

  • Detection Distance: Up to 2 km

  • Antenna Type: High-gain directional jamming antennas with support for horizontal and vertical polarization

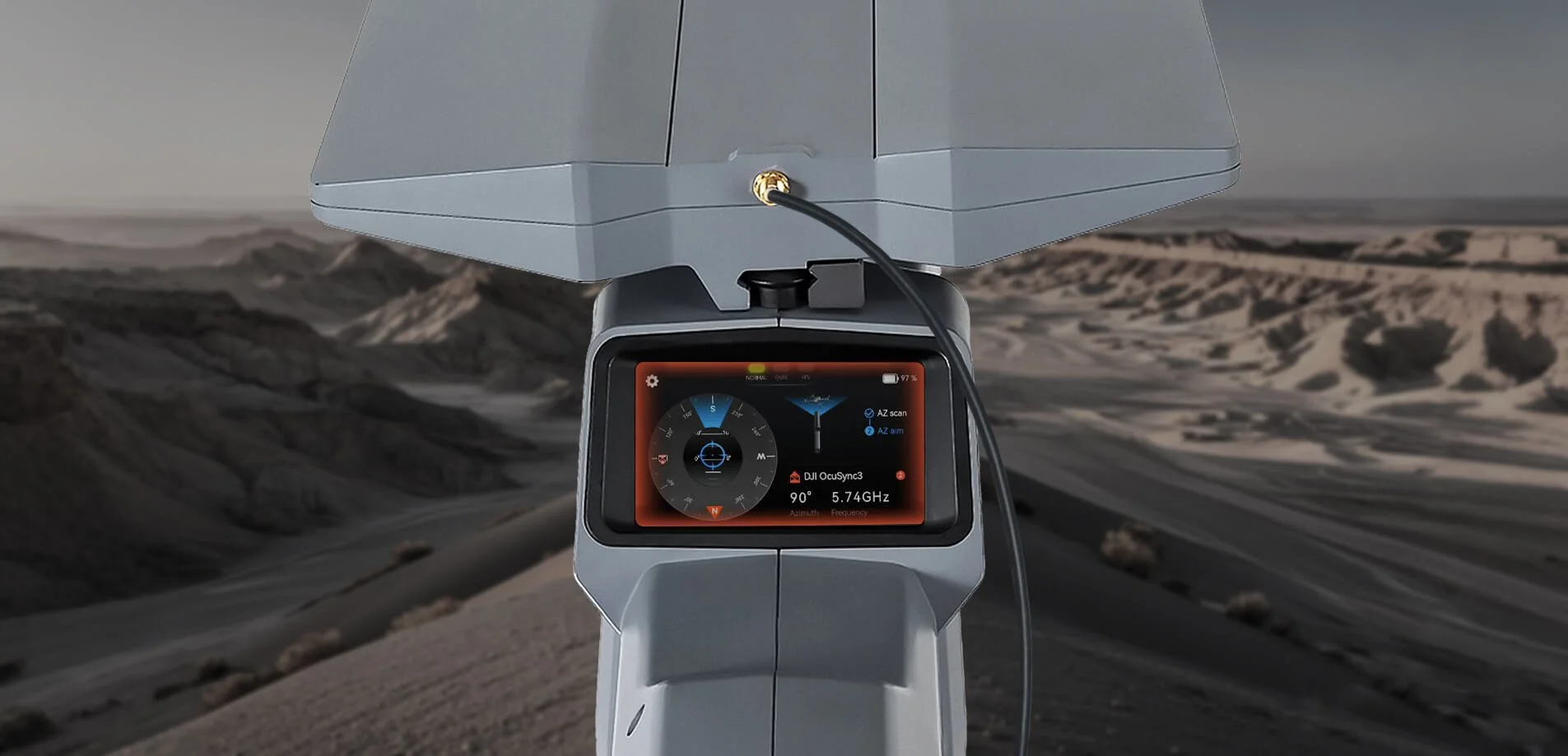

  • Display: High-resolution touchscreen interface for real-time FPV video monitoring and system status

  • Technology: Software Defined Radio (SDR) and digital baseband signal generation

  • Durability: IP65 Rating (Dust-tight and protected against water jets)

  • Operating Temperature: -20°C to 55°C

  • System Features: Real-time analog video reception, fault self-diagnosis, and log export capability

Advantages

  • Integrated Detection and Countermeasure: Combines FPV monitoring and jamming in a single portable unit.

  • Customized Full-Spectrum Coverage: Covers frequency ranges from 300MHz to 6GHz.

  • Software-Defined Radio (SDR) Technology: Utilizes advanced SDR for flexible and precise signal handling.

  • Dual-Polarization Coverage: Offers both horizontal and vertical polarization for more effective interference.

  • Enhanced Radiated Power (ERP): Uses directional jamming antennas to significantly increase power toward targeted threats.
