K01

Key Features

• Autonomous Operations: Supports fully automated UAV take-off, precision landing, and fast battery charging.

• All-Weather Protection: Engineered with a unique barrel-shaped rolling cover that sheds foreign objects and ensures reliable operation in wind, rain, and extreme climates.

• Integrated Climate Control: Features a built-in industrial air conditioner to maintain a drone-friendly environment and protect battery health.

• Smart Power Backup: Highly integrated electrical control box equipped with a UPS (Uninterruptible Power Supply) to ensure emergency protection and safe landing during power outages.

• Advanced perception: Built-in weather station that monitors real-time wind speed, rainfall, temperature, humidity, and air pressure before granting flight clearance.

Environmental Specs & Certifications

• Ingress Protection Rating: IP54 (Dust and splash resistant)

• Operating Temperature Range: -35°C to +50°C

• Operating Humidity Range: ≤ 95%

• Max Operating Altitude: 5000 m

• Night Landing Support: Supported with integrated lighting and beacon perception

Technical Specifications

• Compatible UAV Model: GDU S400E

• Dimensions (Cover Closed): 1460 x 1460 x 1670 mm

• Dimensions (Cover Open): 1460 x 1460 x 1110 mm

• Weight: 255 kg

• Max Video Transmission & Control Range: 8 km

• Positioning Technologies for Landing: RTK and Vision Positioning

• Charging Method: Auto contact charging

• Network Access: Adaptive Ethernet (10/100/1000 Mbps)

• Backend Control Method: Cloud-based WEB platform

• SDK Development: Supported for custom enterprise integration

• Max Power Consumption: 1700W

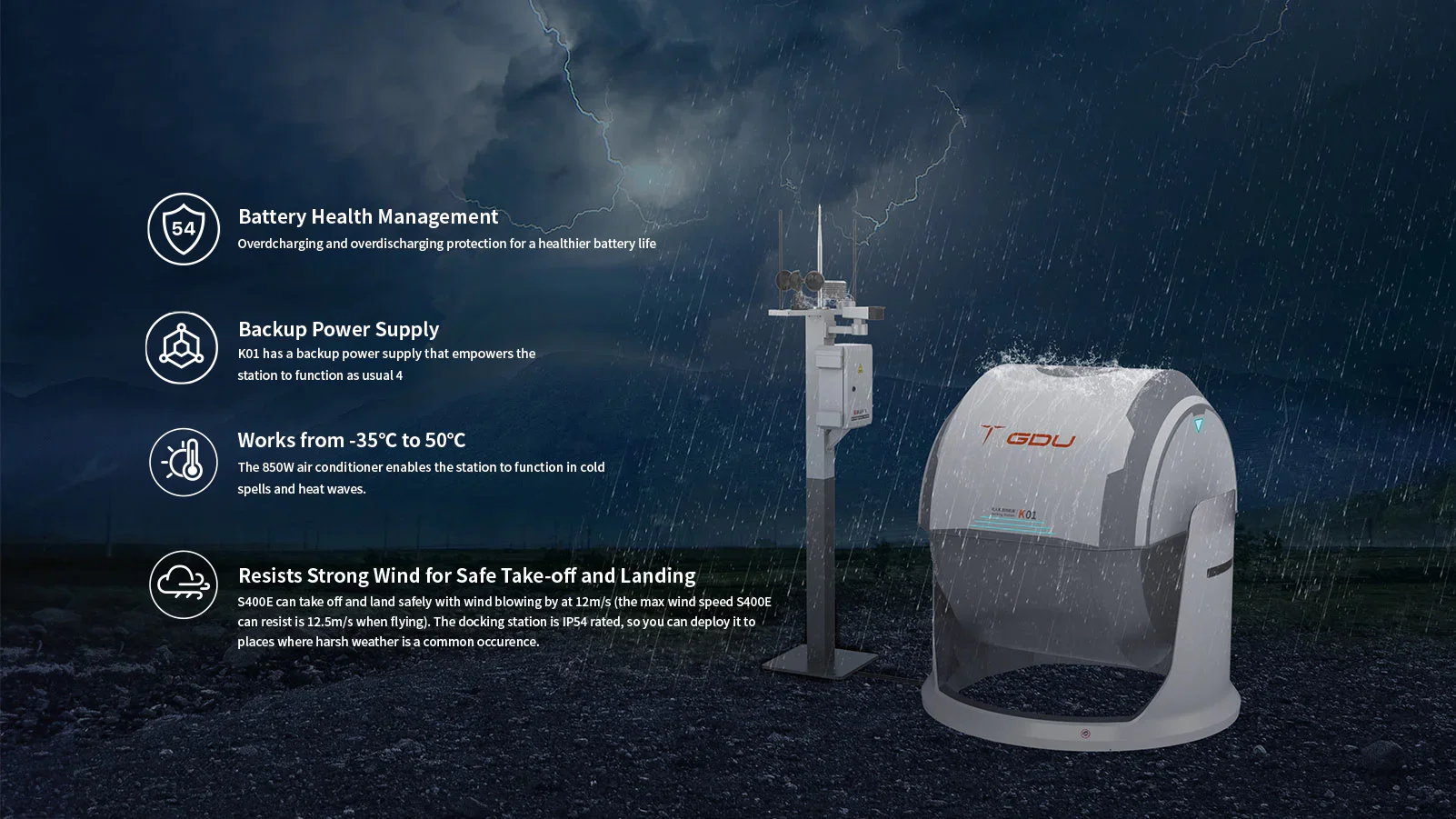

GDU K01’s rolling cover sheds snow and debris automatically to ensure 24/7 autonomous deployment.
