K03

$0.00

Light-weight Auto Charging Docking Station

It weighs only 50kg, covers an area of 0.36m, and has a standby power consumption of less than 10W. Its small size, light weight, and low power consumption, combined with solar power, enable operation in environments without mains power, such as power towers and network-disconnected scenarios. It supports access to 4G and MESH modules, and in wireless environments, it can connect to the nearest network node.

Weight < 50kg
Floor Space < 0.36 ㎡
Charging Time(10%-90%) <35min
Ingress Protection Rating IP55

Light-weight Auto Charging Docking Station

It weighs only 50kg, covers an area of 0.36m, and has a standby power consumption of less than 10W. Its small size, light weight, and low power consumption, combined with solar power, enable operation in environments without mains power, such as power towers and network-disconnected scenarios. It supports access to 4G and MESH modules, and in wireless environments, it can connect to the nearest network node.

Weight < 50kg
Floor Space < 0.36 ㎡
Charging Time(10%-90%) <35min
Ingress Protection Rating IP55

Capabilities

  • Continuous High-Frequency Operations: Fully capable of maintaining endless, back-to-back flight missions by utilizing a rapid robotic battery hot-swap cycle.

  • Persistent Wide-Area Surveillance: Sustains automated, uninterrupted observation over vast logistics paths, cross-border zones, and large industrial grids without human intervention.

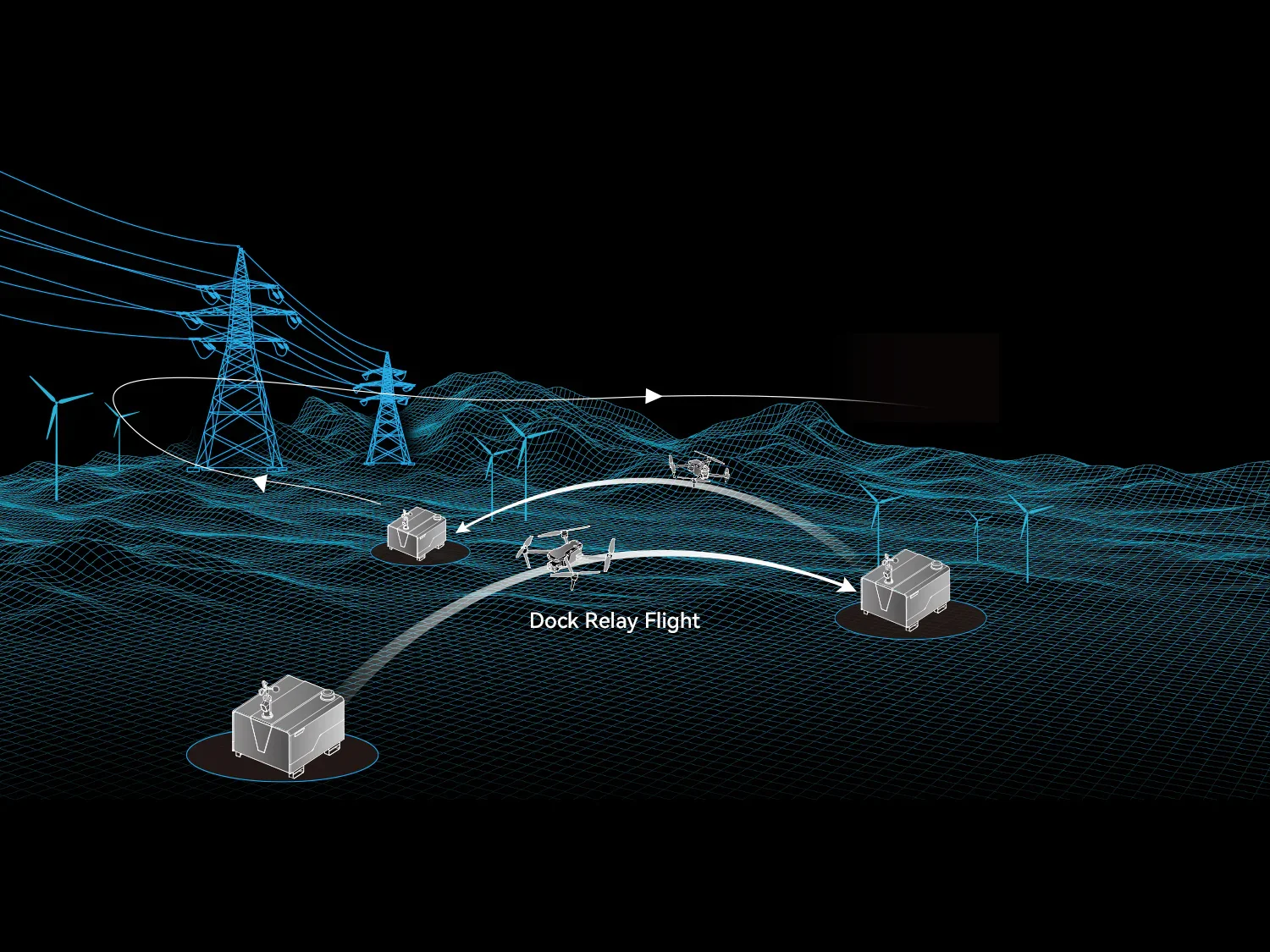

  • Smart Fleet Coordination: Functions as a central nodule for multi-station relay operations, allowing seamless drone handovers and strategic waypoint hopping.

  • Pre-Flight Meteorological Diagnostics: Actively measures real-time climate data to predict flight safety hazards and grant or deny autonomous take-off permissions.

  • Tactical Precision Landing: Fully capable of guiding UAVs to millimeter-accurate autonomous landings via an advanced fusion of RTK telemetry and AI vision algorithms.

Technical Highlights

  • Ultra-Fast Automatic Battery Swap: Features a refined, industrial-grade mechanical arm that replaces low UAV batteries with freshly charged ones in under 90 seconds.

  • Massive Multi-Bay Charging Vault: Houses an integrated, climate-controlled internal storage deck that safely manages, conditions, and charges a large pool of backup batteries.

  • Precision Built-In Weather Hub: Fully integrated environmental sensory array tracking wind velocity, precipitation, temperature, relative humidity, and barometric pressure.

  • Dual-Channel RTK Base Station: Integrated high-accuracy RTK system providing real-time differential corrections for both precision landing and target tracking.

  • Intelligent Thermal Management System: Built-in industrial HVAC system with internal environmental loops to combat blistering summer heat and freezing winter blizzards.

Advantages

  • Zero Mission Gaps: Minimizes drone ground turnaround windows to under 2 minutes, ensuring continuous data acquisition and live streaming for critical operations.

  • Heavy-Duty Power Autonomy: Equipped with a rugged, high-capacity UPS (Uninterruptible Power Supply) that ensures long-lasting emergency operation and safe dock enclosure during grid failures.

  • Fortified Tactical Shell: Built with an advanced IP-rated weather-proof armor designed to survive harsh deployment environments, high-salinity marine air, and extreme dust corridors.

  • Rapid Multi-Scenario Deployment: Optimized structural design that allows for fast installation on utility towers, high-rise building roofs, or mobile tactical trailers.

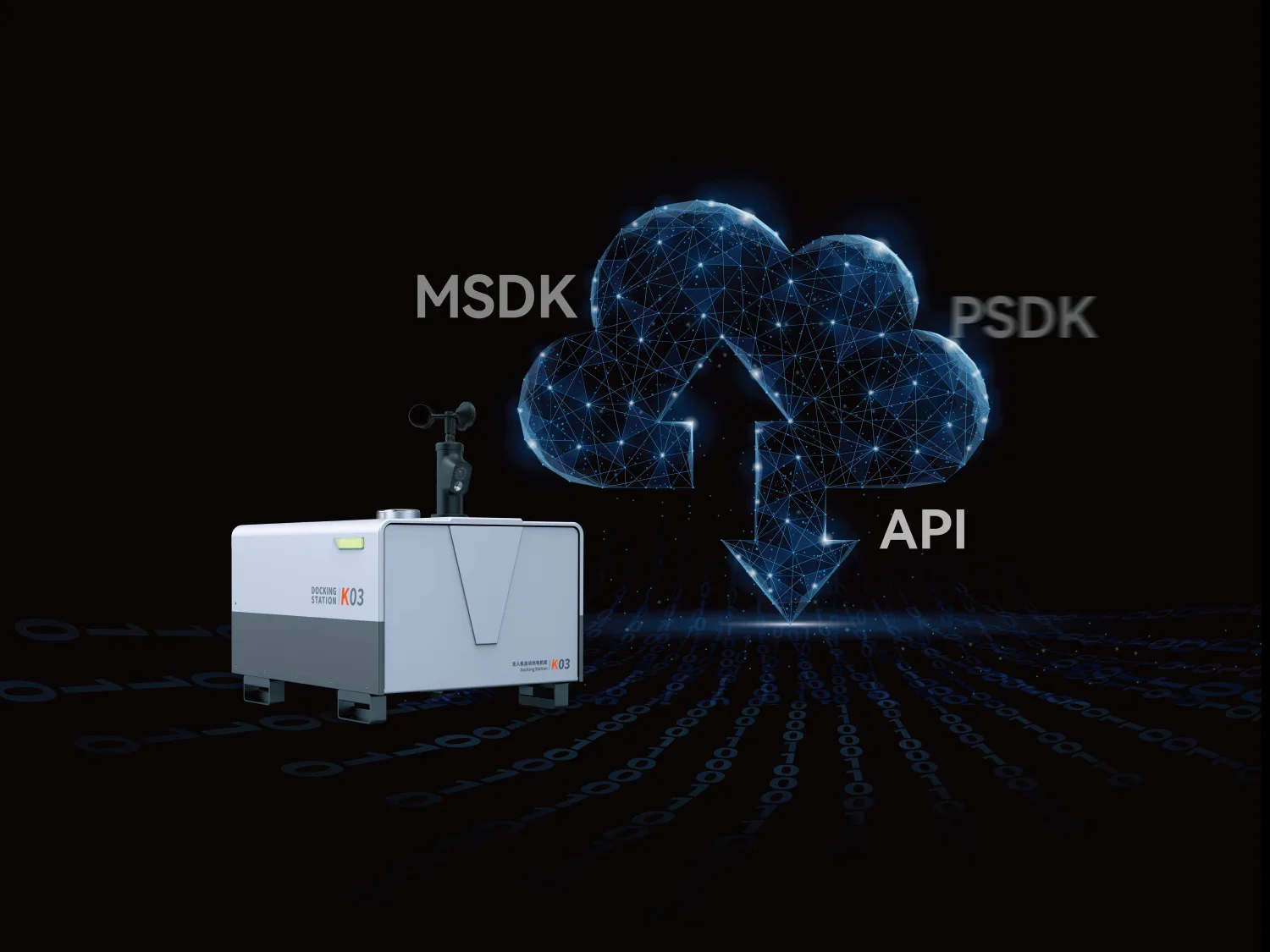

  • Universal Enterprise Cloud Interface: Complete support for open API architectures and developer SDKs, enabling direct control via specialized command centers and remote WEB software.

Applications (Sectors)

  • National Security & Border Tracking: Persistent, autonomous patrolling along harsh perimeters, rugged terrain, and remote outposts with zero ground crew dependency.

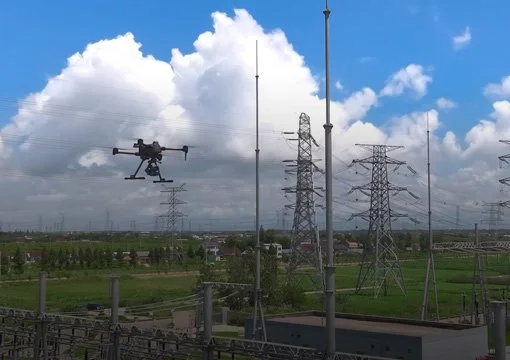

  • Critical Pipeline & Oilfield Patrols: Continuous thermal mapping and structural checking of oil/gas grids, petrochemical facilities, and long-range energy corridors.

  • Advanced Smart City & Traffic Operations: 24/7 automated urban incident monitoring, traffic congestion analytics, and emergency structural inspections.

  • Forestry & Active Fire Reconnaissance: Immediate tactical deployment for fire front tracking, smoke barrier penetration via drone thermal sensors, and environmental safety guarding.

  • Large-Scale Infrastructure & Port Security: Constant aerial fencing, perimeter intrusion checking, and high-frequency asset tracking across massive shipping ports and logistics hubs.
