KU BAND DATALINK

$0.00

Ultra-High-Speed Secure Wideband Communication

The Uni-force Ku-Band Datalink is a premium, bi-directional, real-time secure wideband communication module. It is designed for the remote control and management of Unmanned Aerial Vehicles (UAVs), Unmanned Ground Vehicles (UGVs), and other robotic systems over strategic distances reaching hundreds of kilometers.

Utilizing the Ku-Band spectrum, this system offers exceptionally high communication speeds (up to 300 Mbps) and pushes the boundaries of long-range data transmission. Its unique narrow-point-to-point directional communication method makes it extremely difficult to detect, jam, or intercept, providing an elite level of security for beyond-border operations.

Ultra-High-Speed Secure Wideband Communication

The Uni-force Ku-Band Datalink is a premium, bi-directional, real-time secure wideband communication module. It is designed for the remote control and management of Unmanned Aerial Vehicles (UAVs), Unmanned Ground Vehicles (UGVs), and other robotic systems over strategic distances reaching hundreds of kilometers.

Utilizing the Ku-Band spectrum, this system offers exceptionally high communication speeds (up to 300 Mbps) and pushes the boundaries of long-range data transmission. Its unique narrow-point-to-point directional communication method makes it extremely difficult to detect, jam, or intercept, providing an elite level of security for beyond-border operations.

Key Features

  • High-Speed Data Transfer: Supports communication speeds up to 300 Mbps for massive data throughput.

  • Stealth & Interference Resistance: Narrow directional beams ensure the link is highly resistant to detection and electronic jamming.

  • Ultra-Low Latency: Optimized for real-time responsiveness with a delay rate of less than 80ms.

  • Advanced Encryption: Integrated dual-layer 128-bit AES encryption for mission-critical security.

  • Integrated Antenna Design: Features a built-in waveguide antenna with high directional gain.



Technical Specifications

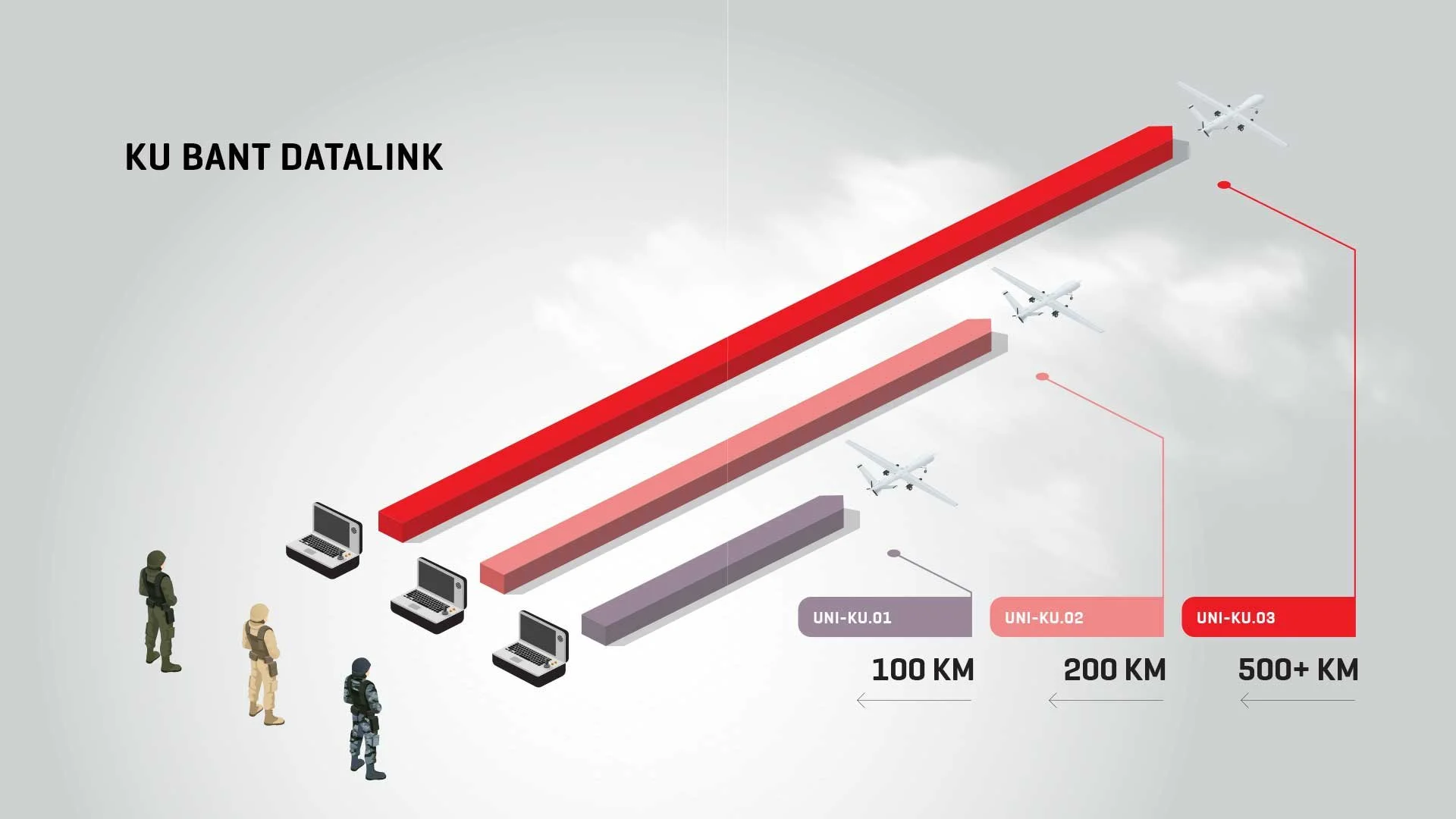

Feature Model: UNI-KU.01 Model: UNI-KU.02 Model: UNI-KU.03

Operating Frequency Ku Band Ku Band Ku Band

Modulation Type PSK, QPSK, QAM (Auto/Manual) PSK, QPSK, QAM (Auto/Manual) PSK, QPSK, QAM (Auto/Manual)

Bandwidth 0-150 Mbps / 0-20 MHz 0-150 Mbps / 0-20 MHz 0-150 Mbps / 0-20 MHz

RF Output Power 0 - 500 mW (Auto/Manual) 0 - 500 mW (Auto/Manual) 0 - 2000 mW (Auto/Manual)

Interconnection Protocol Ethernet (IP-based) Ethernet (IP-based) Ethernet (IP-based)

Security 128-bit AES Encryption 128-bit AES Encryption 128-bit AES Encryption

Data Latency Max 80ms Max 80ms Max 80ms

Antenna Output Built-in waveguide antenna Built-in waveguide antenna Built-in waveguide antenna

Operating Voltage DC +20-36 V DC +20-36 V DC +20-36 V

Power Consumption 10 - 50 Watts 15 - 100 Watts 20 - 100 Watts



Applications

  • High-definition video and data transmission for strategic UAVs.

  • Secure communication for long-range autonomous ground platforms (UGVs).

  • Beyond-line-of-sight (BLOS) remote control operations.

  • Mission-critical links requiring high resistance to electronic warfare (EW).
