PWG01 Penta Smart Camera Gimbal

$0.00

This solution integrates five advanced modules: a 1/0.98-inch wide camera, a 34x continuous optical zoom camera, a 1K infrared thermal imager (PWG01 only), a laser rangefinder, and a near-infrared (NIR) auxiliary light. Powered by 10.4T of AI computing performance, it significantly enhances imaging and perception capabilities. This solution transcends spatial boundaries and overcomes the day-night vision limitations, making it well-suited for tasks in smart city management, public safety, energy inspection, water conservancy, and forestry operations.

This solution integrates five advanced modules: a 1/0.98-inch wide camera, a 34x continuous optical zoom camera, a 1K infrared thermal imager (PWG01 only), a laser rangefinder, and a near-infrared (NIR) auxiliary light. Powered by 10.4T of AI computing performance, it significantly enhances imaging and perception capabilities. This solution transcends spatial boundaries and overcomes the day-night vision limitations, making it well-suited for tasks in smart city management, public safety, energy inspection, water conservancy, and forestry operations.

Capabilities

  • Penta-Sensor Operational Fusion: Fully capable of running real-time synchronized diagnostics across five advanced optical, thermal, and laser telemetry modules simultaneously.

  • Extreme Long-Range Vehicle Tracking: Capable of reading vehicle license plates and distinguishing precise tactical movements from a standoff distance of up to 800 meters.

  • Active Illuminating Night Scouting: Fully capable of illuminating hidden targets up to 120 meters away in absolute zero-light scenarios using integrated near-infrared configurations.

  • AI-Enhanced Thermal Upscaling: Leverages edge processing to upscale native thermal images, exposing hidden tactical structures or overheating grid connections with deep resolution.

  • Laser-Assisted Geolocation: Instantly locks and calculates precise target coordinates (latitude and longitude) and true distance from the aircraft using smart pinpointing logic.

Technical Highlights

  • 5-in-1 Comprehensive Gimbal Matrix: Integrates a 1/0.98-inch wide-angle camera, a 34x continuous optical zoom lens, a native 1K infrared thermal imager, a high-precision laser rangefinder, and a near-infrared (NIR) auxiliary light.

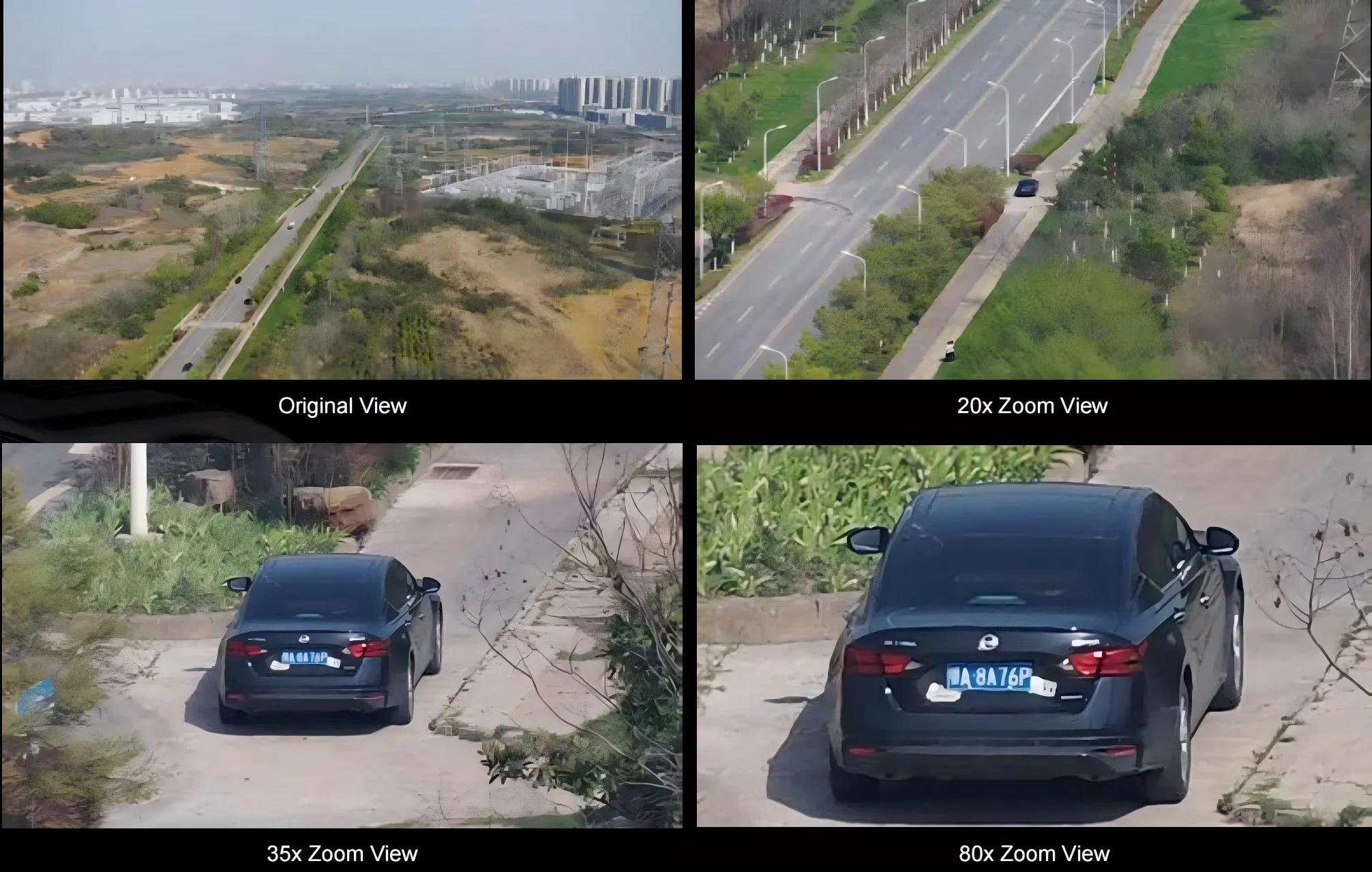

  • 544x Ultra-High Hybrid Zoom: Employs a massive 34x continuous optical zoom that extends into a maximum 544x hybrid zoom range for unmatched standoff surveillance capability.

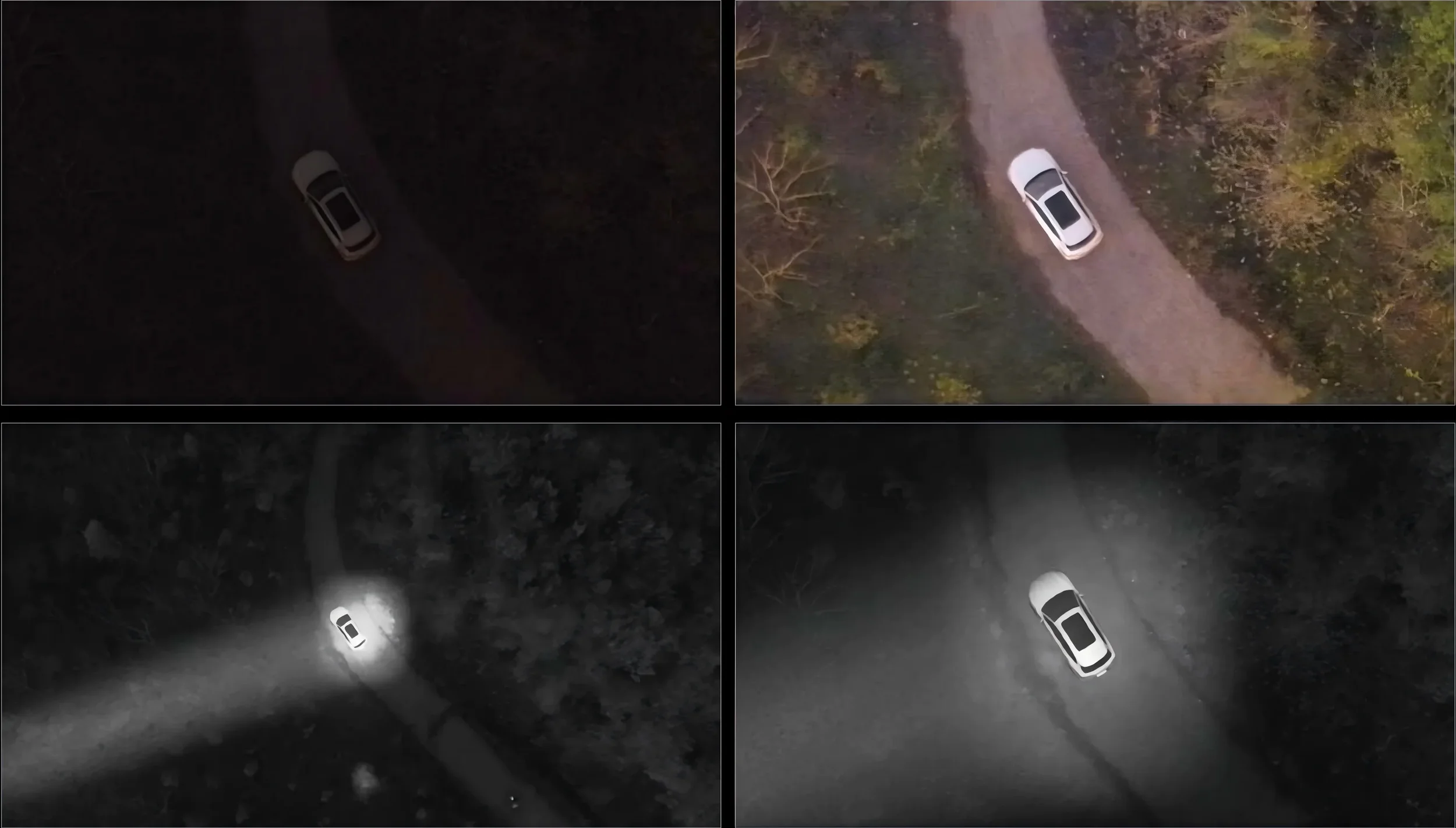

  • AI 4K Full-Color Night Vision: Supports a hypersensitive 4K night mode with ISO settings peaking at 2,400,000, utilizing an IR Cut mode to scan the full 400-1000 nm light spectrum.

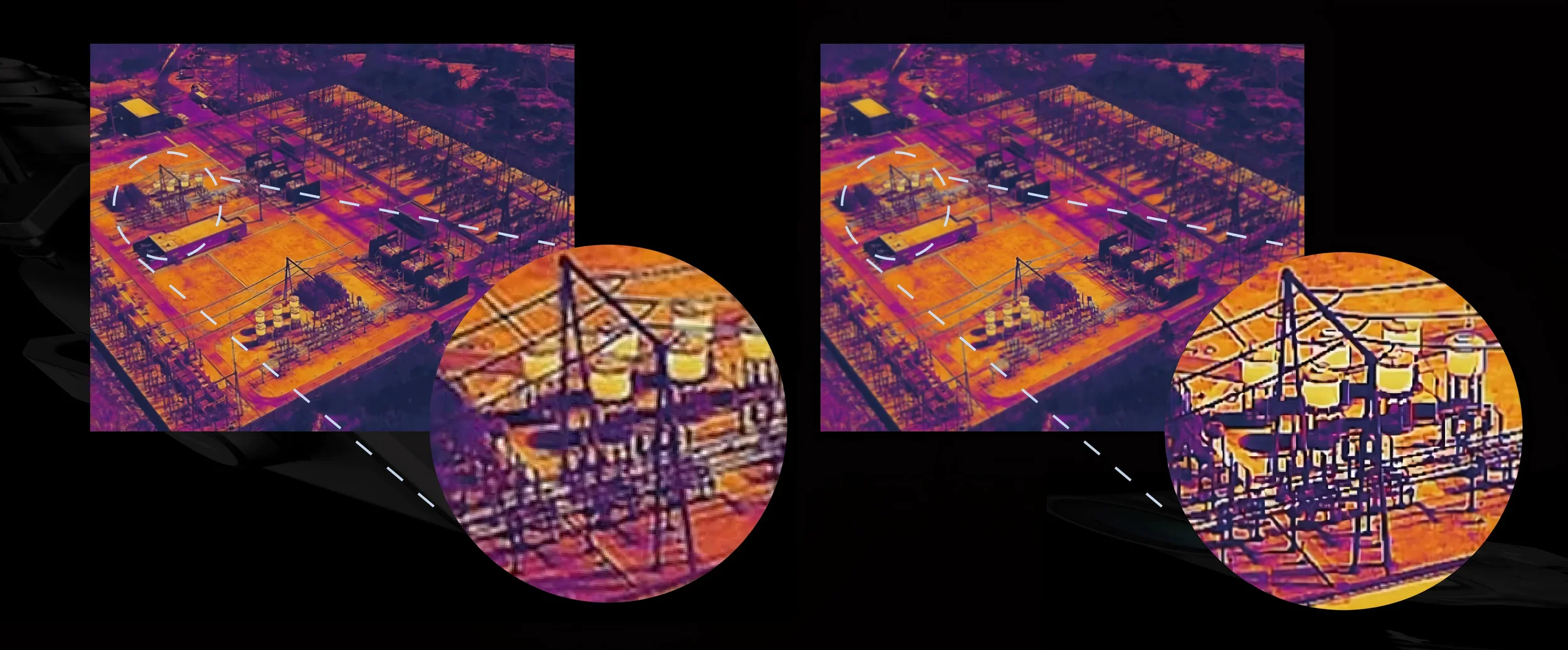

  • Native 1K Core to 2K Thermal Imaging: Features a native 1K thermal core paired with a 25 mm focal length lens, utilizing AI-powered Ultra-High Resolution (UHR) algorithms to scale footage up to 2K resolution with 32x hybrid zoom.

  • 2000m Intelligent Laser Rangefinder: Features a powerful built-in laser rangefinder capable of measuring absolute distance and geographic data up to a maximum range of 2000 meters.

Advantages

  • Standoff Surveillance Safety: The extreme 544x zoom allows tactical drones to remain completely undetected outside acoustic/visual ranges while tracking targets with flawless clarity.

  • Absolute Zero-Light Domination: Combines a massive 2.4M ISO sensor with an active NIR auxiliary light, stripping adversaries or complex environments of any dark coverage.

  • Dynamic Backlight Balancing: The 1/0.98-inch wide camera utilizes a 50MP sensor with a massive photosensitive area, preventing image wash-out during intense morning glares or strong industrial backlighting.

  • Factory-Calibrated Thermal Reliability: Every module undergoes rigorous hardware calibration with a built-in sensor providing real-time temperature correction to maintain precise, unshifted industrial thermal measurements.

System Specifications

  • Gimbal Architecture: 5-in-1 integrated smart enterprise payload (Wide + Zoom + 1K Thermal + Laser Rangefinder + NIR Light).

  • Optical & Hybrid Magnification: 34x continuous optical zoom / 544x maximum hybrid zoom capability.

  • Night Vision Sensitivity: AI-enhanced full-color night vision with a maximum ISO of 2,400,000.

  • Thermal Core Processing: Native 1K core upscaled to 2K via AI UHR algorithms (25mm lens, 32x thermal hybrid zoom).

  • Telemetry Performance: 2000-meter maximum laser rangefinding with real-time target coordinate calculations.

Applications (Sectors)

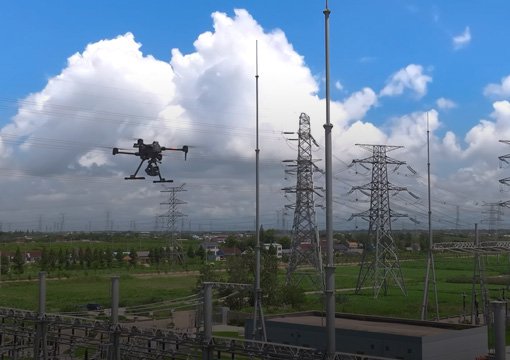

  • Power Grid Inspection & Substation Scanning: Scanning high-voltage lines from safe standoff distances, identifying minute component fatigue through 2K upscaled thermal arrays.

  • Border Control & Perimeter Defense: Undetected long-range tracking of suspect movements up to 800m away, utilizing NIR illumination for absolute darkness surveillance.

  • Emergency Support & Tactical Firefighting: Penetrating thick smoke blankets during industrial fires to locate hotspots and utilizing laser telemetry to broadcast exact coordination maps.

  • Smart City Management & Event Security: Comprehensive crowd monitoring, long-range license plate logging for security enforcement, and real-time multi-sensor streaming.

  • Smart Industrial Parks & Petrochemical Asset Monitoring: Constant autonomous thermal profiling of oil tanks, pipelines, and structural borders to prevent leaks or sabotage.
