Strategic High-Speed Secure Communication

Uni-force S-Band Datalinks are high-performance communication and management modules designed for seamless interaction between single, dual, or multiple military units. Engineered for long-range strategic operations, they enable reliable remote control of UAVs, S-UAVs (UCAVs), USVs, and other systems over distances spanning hundreds of kilometers.

The system delivers real-time, uninterrupted, and secure bi-directional communication across a wideband spectrum. Utilizing advanced digital modulation techniques (PSK, QPSK, QAM) and robust two-layer AES 128-bit encryption, it ensures high-speed data transmission with critical low latency (under 80ms). It is a versatile solution for the remote guidance and control of aerial, terrestrial, and maritime vehicles.

Strategic High-Speed Secure Communication

Uni-force S-Band Datalinks are high-performance communication and management modules designed for seamless interaction between single, dual, or multiple military units. Engineered for long-range strategic operations, they enable reliable remote control of UAVs, S-UAVs (UCAVs), USVs, and other systems over distances spanning hundreds of kilometers.

The system delivers real-time, uninterrupted, and secure bi-directional communication across a wideband spectrum. Utilizing advanced digital modulation techniques (PSK, QPSK, QAM) and robust two-layer AES 128-bit encryption, it ensures high-speed data transmission with critical low latency (under 80ms). It is a versatile solution for the remote guidance and control of aerial, terrestrial, and maritime vehicles.

Key Features

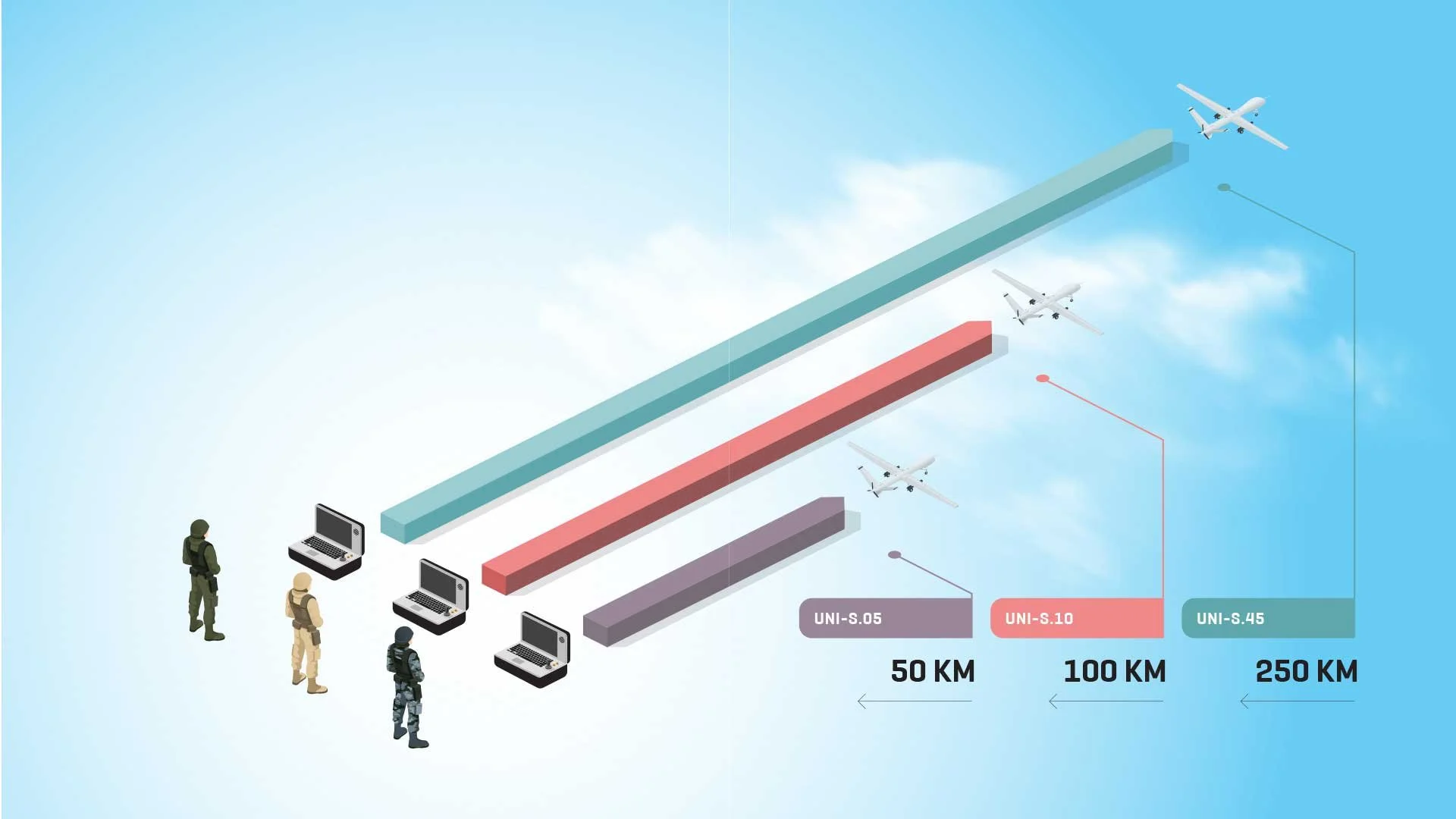

  • Continuous Control Power: Provides a stable link for remote operations over hundreds of kilometers.

  • Bi-Directional Security: Real-time, encrypted two-way communication for sensitive mission data.

  • Advanced Modulation: Supports PSK, QPSK, and QAM digital modulation for optimized signal integrity.

  • Minimal Latency: High-speed processing with data delay rates of less than 80ms.

  • Strategic Versatility: Ideal for commanding air, land, and sea platforms from a distance.



Technical Specifications

Feature Model: UNI-S.05 Model: UNI-S.10 Model: UNI-S.45

Operating Frequency S Band S Band S Band

Modulation Type Digital modulation PSK, QPSK, QAM (Auto/Manual) PSK, QPSK, QAM (Auto/Manual)

Bandwidth 0-10 Mbps / 0-5 MHz 0-10 Mbps / 0-5 MHz 0-10 Mbps / 0-5 MHz

RF Output Power 0 - 5 Watts (Auto/Manual) 0 - 10 Watts (Auto/Manual) 0 - 25 Watts (Auto/Manual)

Interconnection Protocol Ethernet (IP-based) Ethernet (IP-based) Ethernet (IP-based)

Security 128-bit AES Encryption 128-bit AES Encryption 128-bit AES Encryption

Data Latency Max 80ms Max 80ms Max 80ms

Antenna Output SMA SMA SMA

Operating Voltage DC +28-36 V DC +28-36 V DC +28-36 V

Power Consumption 10 - 25 Watts 20 - 50 Watts 30 - 100 Watts



Applications

  • Long-range strategic control for tactical UAVs and UCAVs.

  • Remote management of Unmanned Ground Vehicles (UGVs) and Surface Vehicles (USVs).

  • Real-time secure data link for multi-unit military coordination.

  • High-speed IP-based communication for mission-critical operations.
