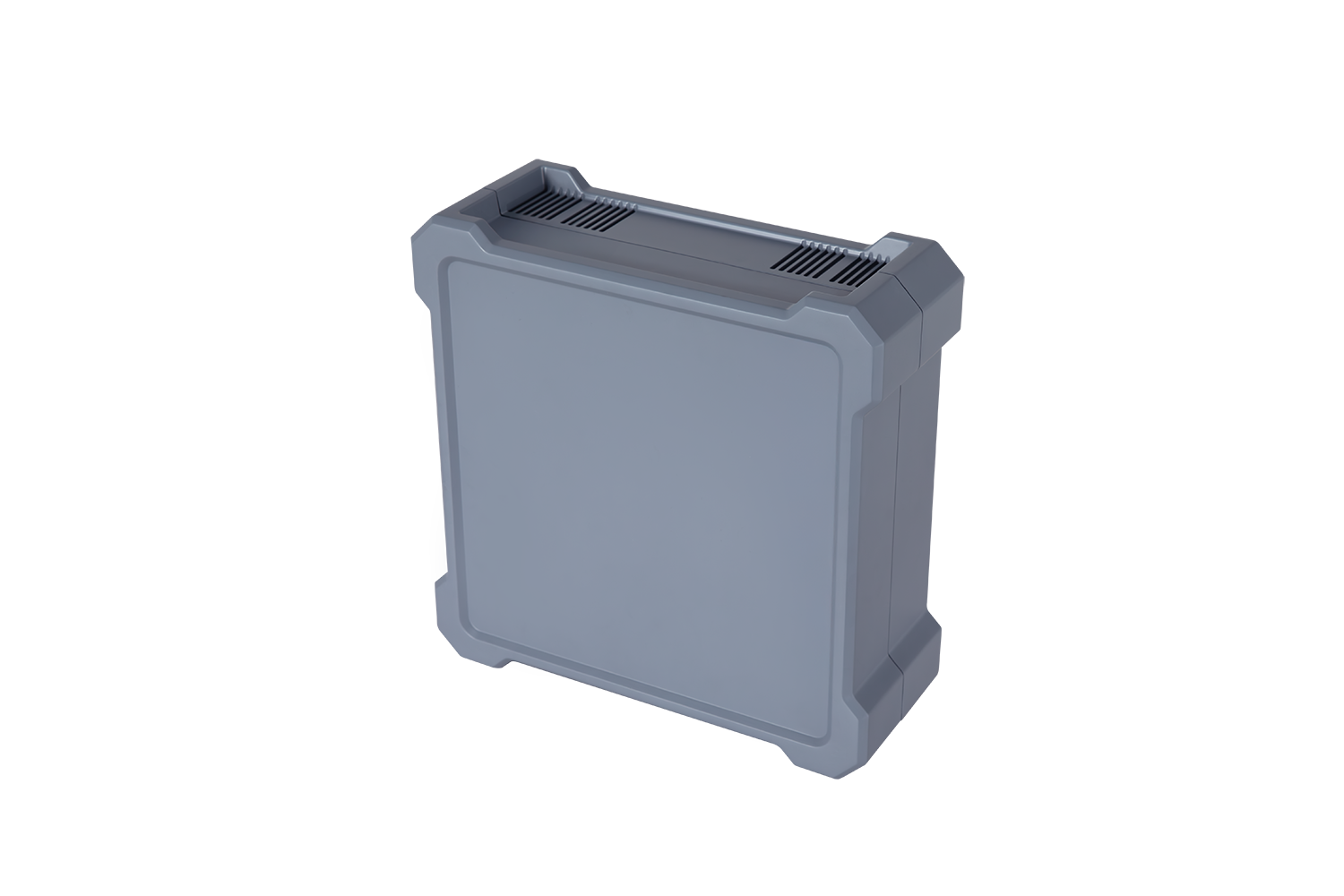

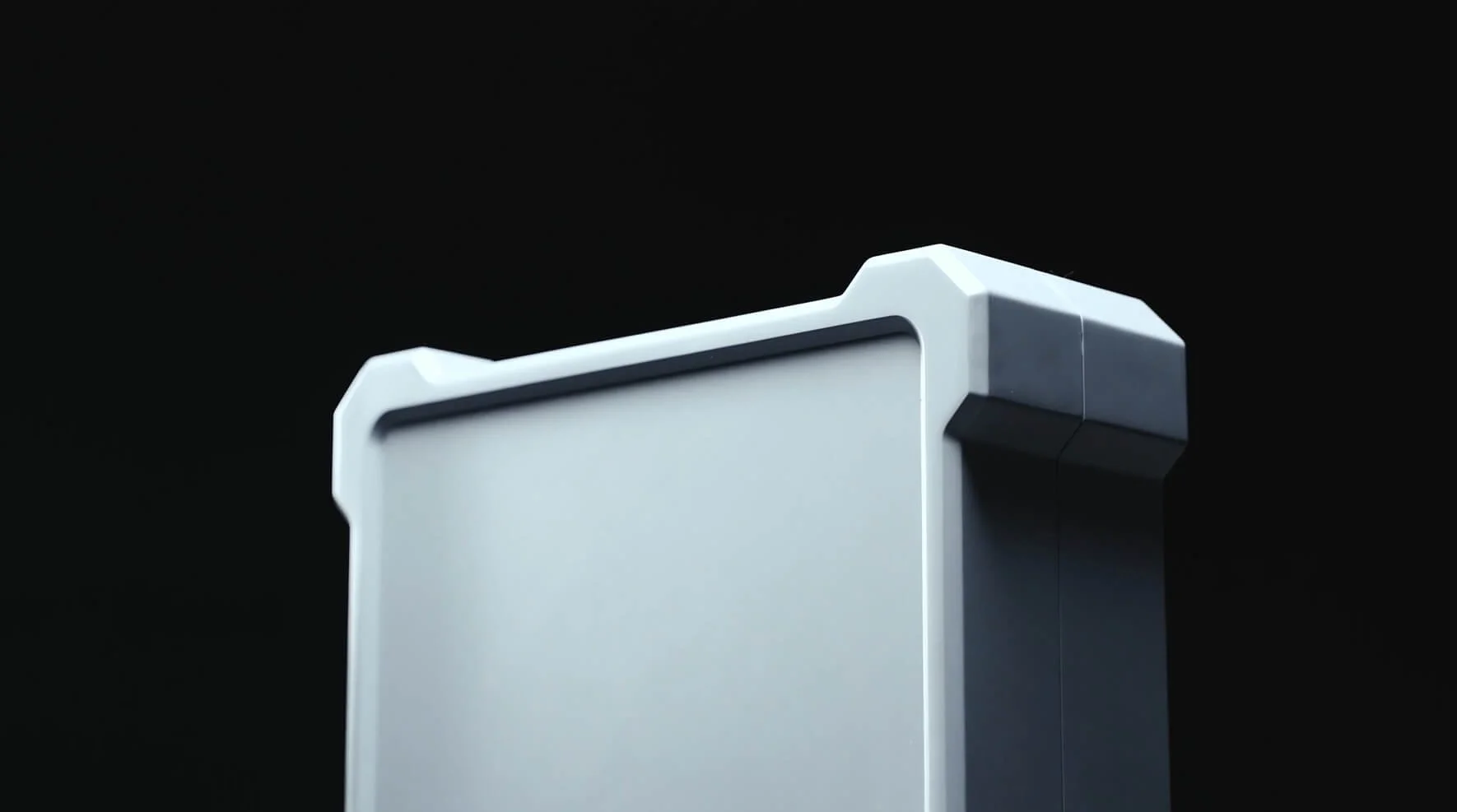

Tracker Pro DPH110

$0.00

Medium-range Active Phased Array Radar

Tracker Pro is an X-band AESA radar system designed for all-weather integrated air-ground 4D (range, azimuth, elevation, and velocity) target detection, featuring user-defined scanning modes including horizontal 360° mechanical scanning or 90° phase scanning, along with vertical electronic scanning across different airspace sectors. It enables high-precision, high-fidelity detection and precise tracking of all types of aerial threats—including conventional, low-emission, fiber-optic（FPV）, and autonomous drones—as well as ground-based personnel and vehicle targets. It provides guidance support for optical sensors and countermeasure systems, with flexible deployment options for both fixed-site installations and vehicle-mounted mobile platforms.

Medium-range Active Phased Array Radar

Tracker Pro is an X-band AESA radar system designed for all-weather integrated air-ground 4D (range, azimuth, elevation, and velocity) target detection, featuring user-defined scanning modes including horizontal 360° mechanical scanning or 90° phase scanning, along with vertical electronic scanning across different airspace sectors. It enables high-precision, high-fidelity detection and precise tracking of all types of aerial threats—including conventional, low-emission, fiber-optic（FPV）, and autonomous drones—as well as ground-based personnel and vehicle targets. It provides guidance support for optical sensors and countermeasure systems, with flexible deployment options for both fixed-site installations and vehicle-mounted mobile platforms.

Capabilities

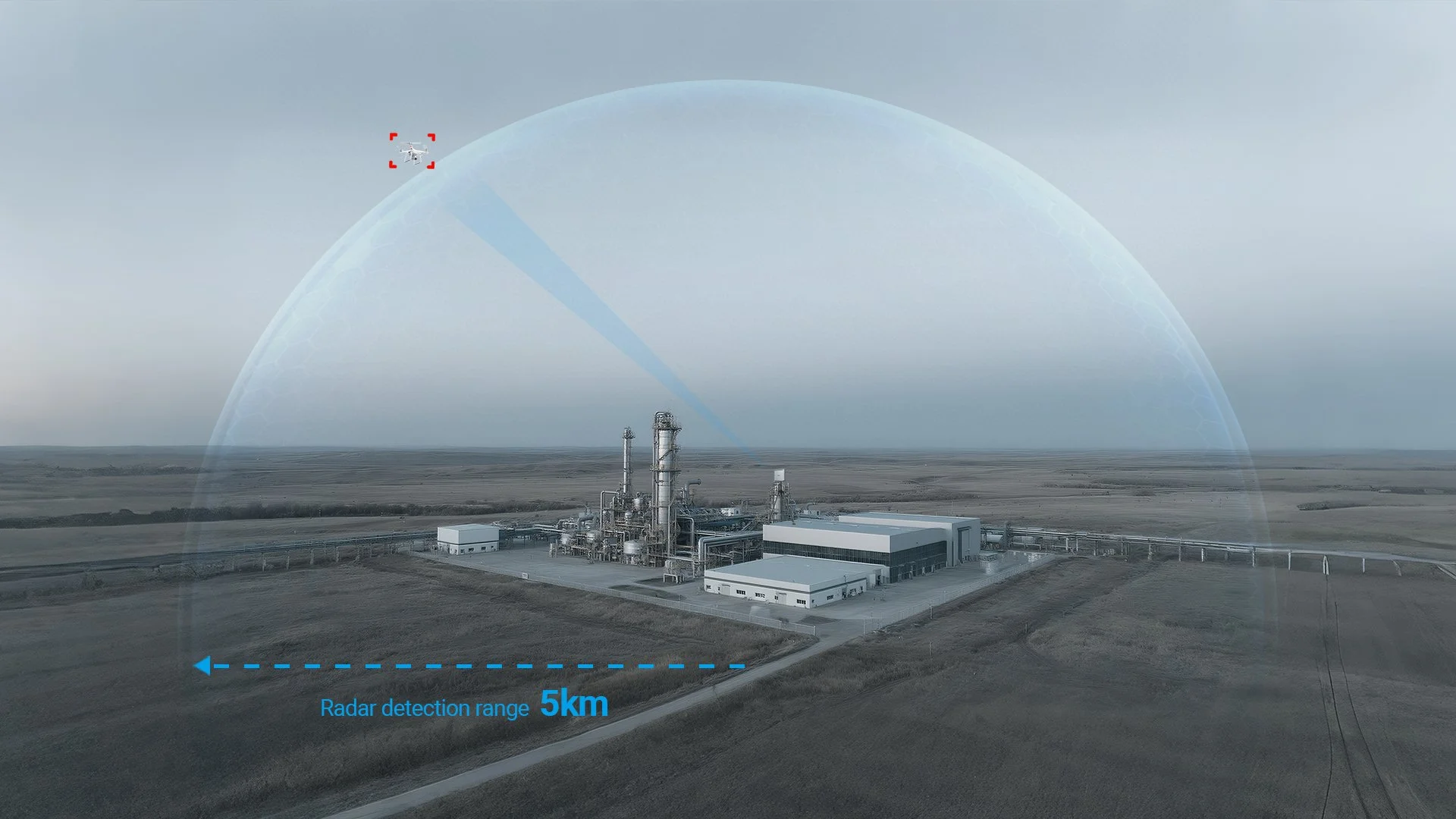

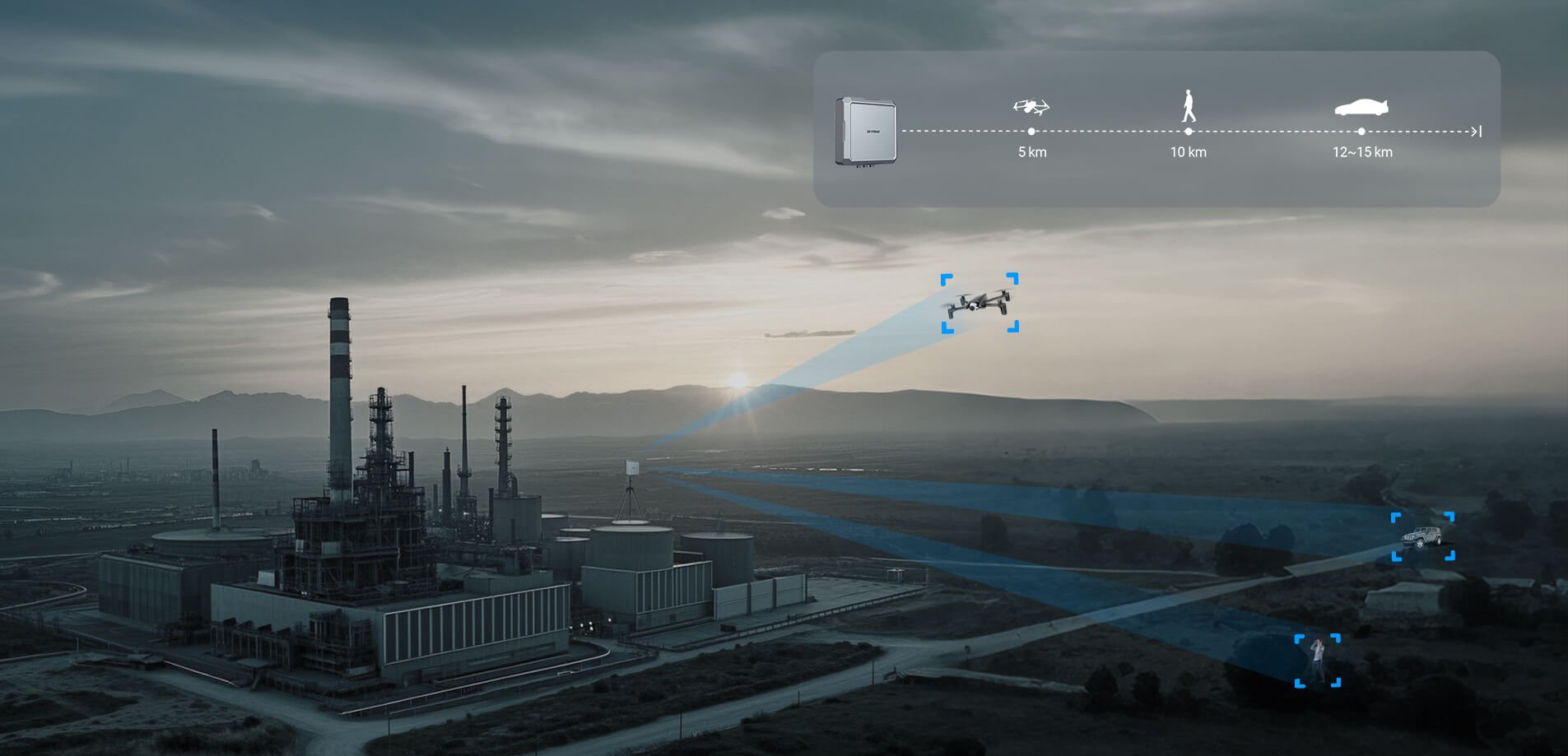

  • Wide-Area Air-Ground Detection: All-weather surveillance that detects low, slow, and small UAVs up to 5km, pedestrians up to 10km, and vehicles within 12-15km.

  • Precision Guidance: Enables real-time wireless data sharing, multi-source data fusion, and threat level assessment, providing high-precision autonomous guidance for optical tracking and countermeasure systems.

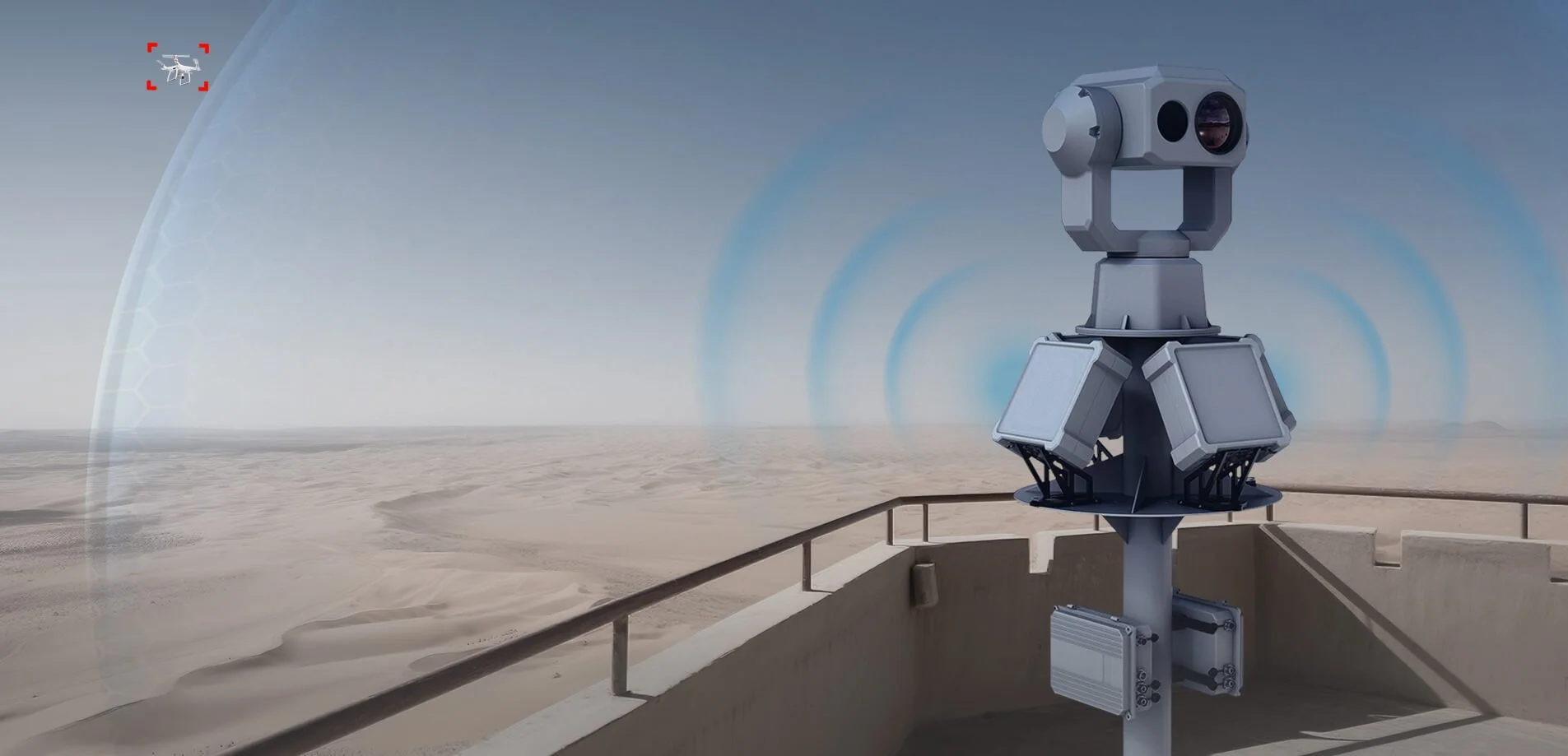

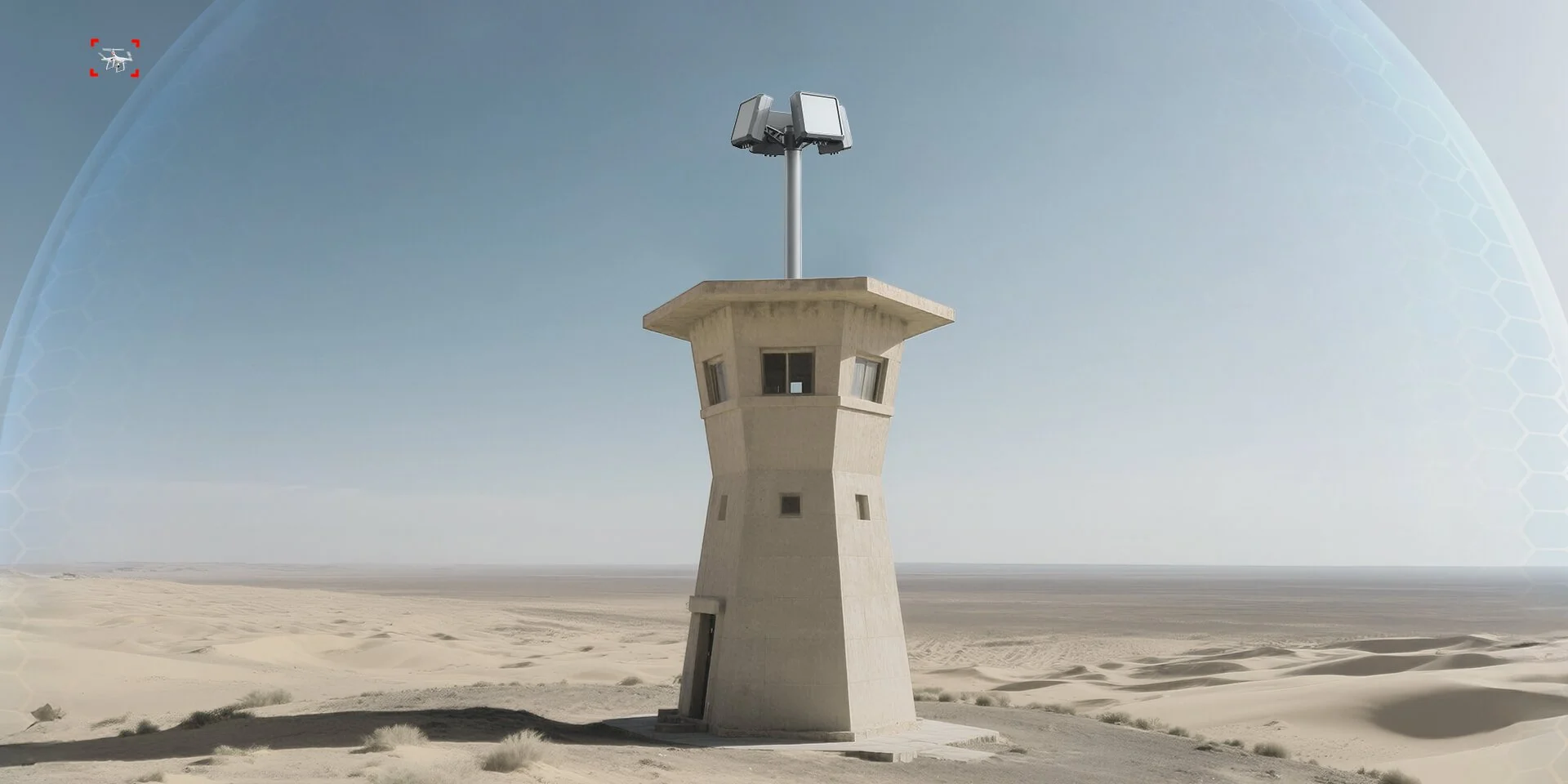

  • Versatile Deployment & Multi-Mode Operation: Supports 360° horizontal mechanical scanning, 90° electronic scanning, and vertical sector scanning. It can be deployed as a single radar with a gimbal or configured in a four-panel network for full 360° coverage.



Technical Highlights

  • Radar Type: X-band Active Electronically Scanned Array (AESA).

  • Detection Dimensions: 4D (Range, Azimuth, Elevation, Velocity).

  • Detection Range (Small UAVs): Up to 5 km.

  • Detection Range (Pedestrians): Up to 10 km.

  • Detection Range (Vehicles): 12 - 15 km.

  • Scanning Modes: 360° mechanical or 90° electronic phase scanning.



Advantages

  • High-Precision Positioning: Accurate 4D coordinates and velocity tracking.

  • Powerful Performance: Reliable detection in all weather conditions.

  • Rapid Deployment: Designed for quick integration into various security infrastructures.

  • Flexible Networking: Supports standalone use or networked configurations for expanded coverage.



Applications (Sectors)

  • Border Security: Long-range detection of drones, people, and vehicles.

  • Airports: Wide-area airspace monitoring and protection.

  • Infrastructure & Energy: Protecting large-scale assets from aerial and ground threats.

  • Events & Stadiums: Comprehensive situational awareness for large public events.

  • VIP Protection: High-fidelity security perimeters for stationary or mobile sites.

  • Prisons: 24/7 all-weather drone and ground threat monitoring.
