Tracker SDH100

$0.00

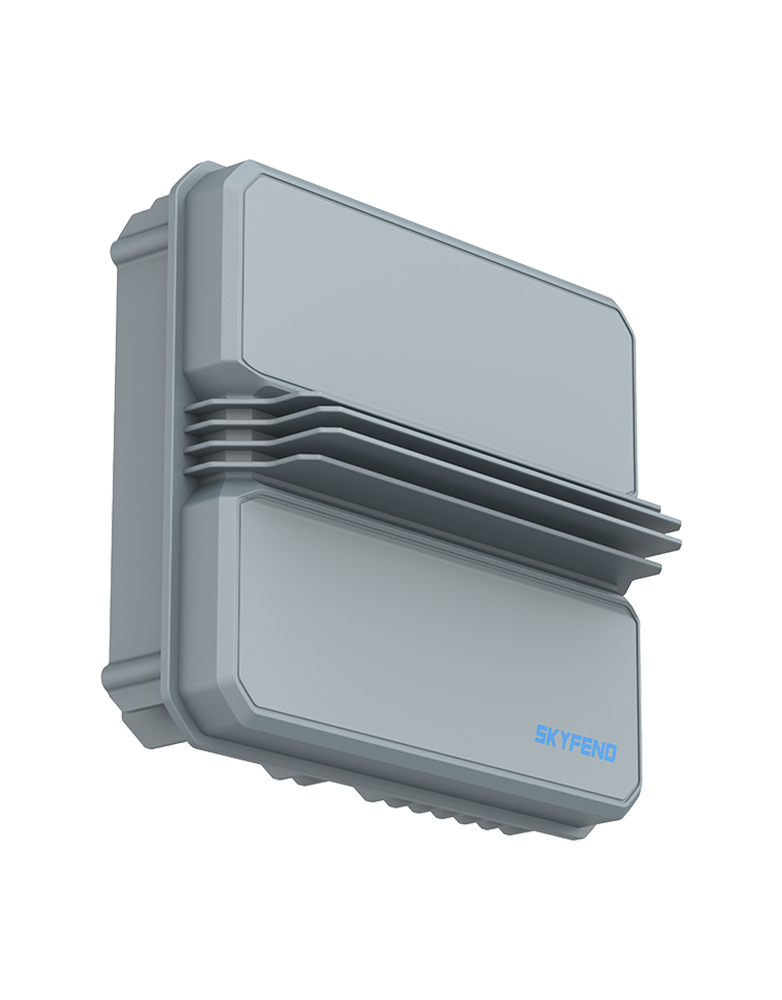

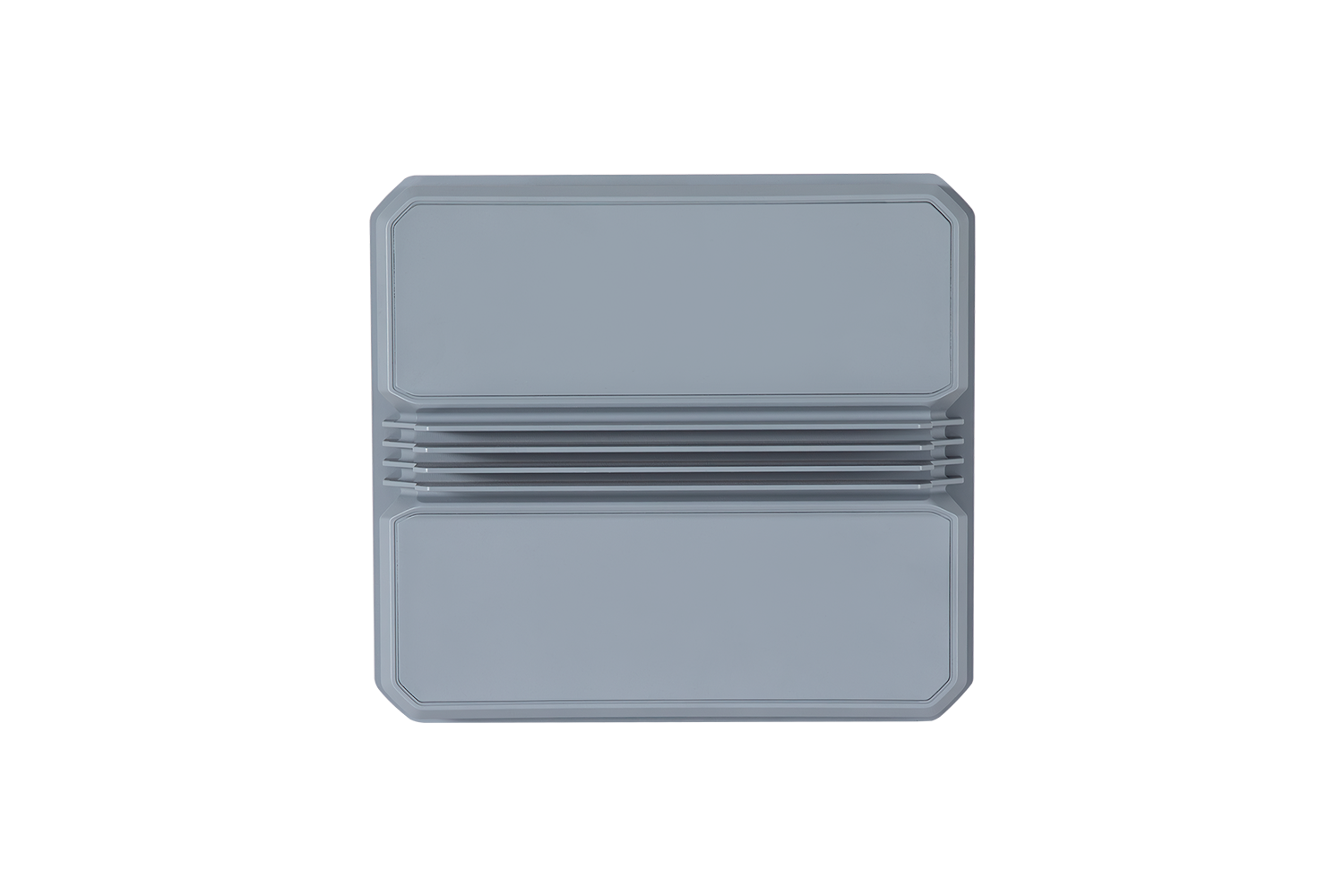

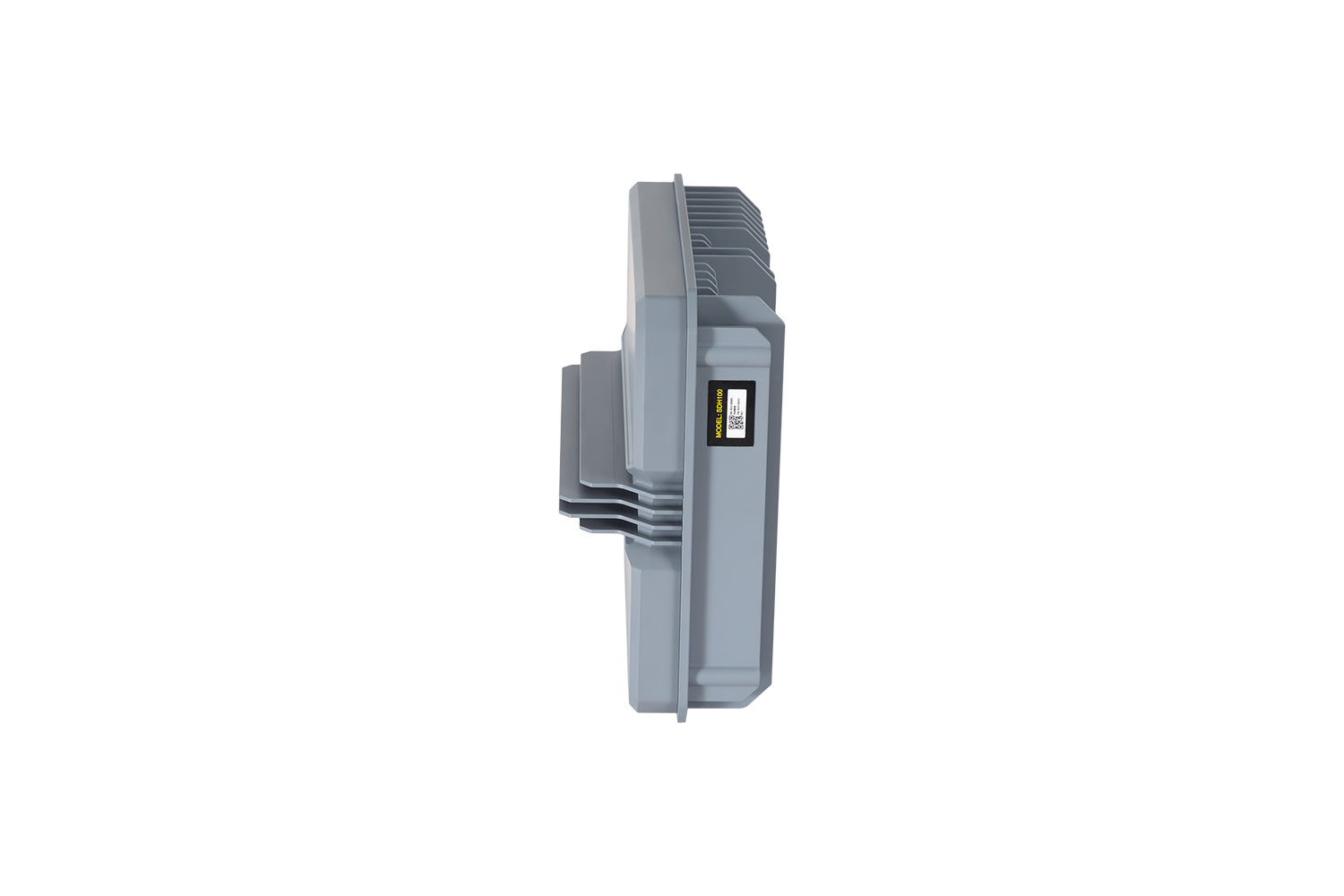

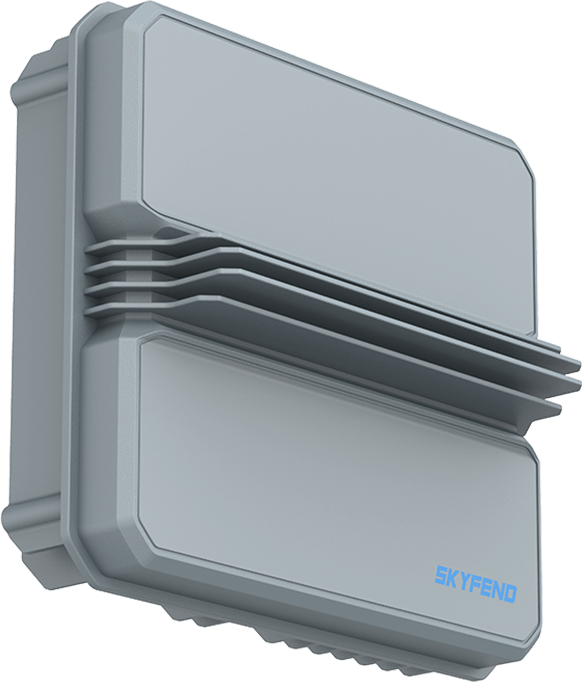

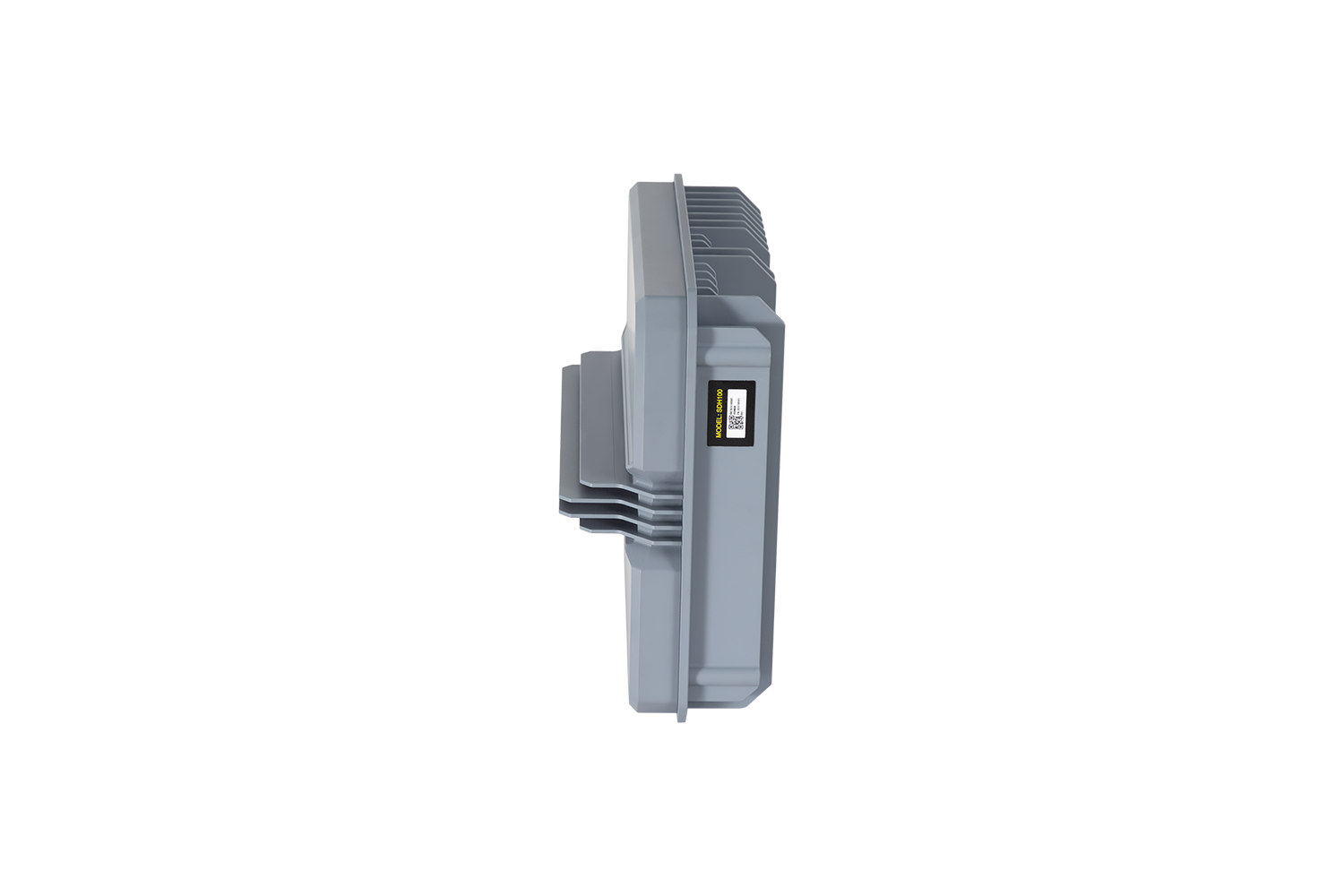

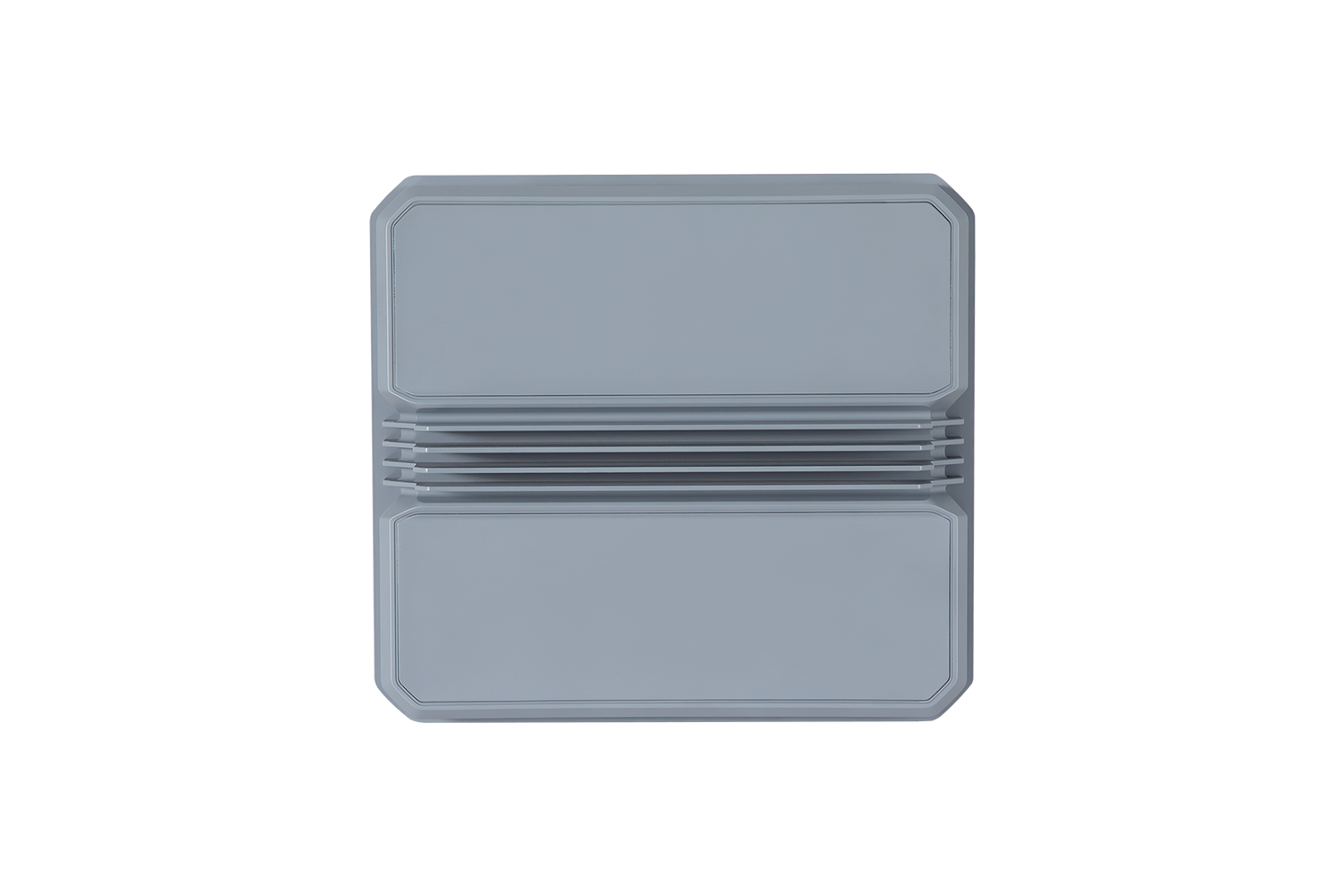

Compact Active Phased Array Radar

Tracker is a K-band active electronically scanned array (AESA) radar featuring low SWaP (Size, Weight, and Power) and all-weather, integrated air-to-ground 4D detection capabilities (range, azimuth, elevation, and velocity). It delivers high update rate and high-fidelity tracking of all classes of aerial threats—including conventional, low-emission, fiber-optic-controlled (FPV), and autonomous drones—as well as ground targets such as personnel and vehicles. The system supports guidance for optical sensors and countermeasure platforms and is adaptable for deployment on fixed sites, vehicles, or unmanned aerial platforms.

Compact Active Phased Array Radar

Tracker is a K-band active electronically scanned array (AESA) radar featuring low SWaP (Size, Weight, and Power) and all-weather, integrated air-to-ground 4D detection capabilities (range, azimuth, elevation, and velocity). It delivers high update rate and high-fidelity tracking of all classes of aerial threats—including conventional, low-emission, fiber-optic-controlled (FPV), and autonomous drones—as well as ground targets such as personnel and vehicles. The system supports guidance for optical sensors and countermeasure platforms and is adaptable for deployment on fixed sites, vehicles, or unmanned aerial platforms.

Capabilities

  • Beyond-Visual-Line-of-Sight Air-to-Ground Detection: Low SWaP-C integrated air-to-ground beyond-line-of-sight detection: detects low, slow, and small UAVs at 1.1 km, pedestrians at 2.2 km, and vehicles at 4 km.

  • High-Efficiency Target Guidance: Supports real-time wireless data transmission, multi-source data fusion, and threat level assessment, enabling autonomous guidance for optical tracking and countermeasure systems.

  • Reliable and Flexible Networking: Operates as a standalone unit via wired or wireless connections, or forms a wireless self-organizing network with multiple units. A four-radar configuration enables full 360° coverage.



Technical Specifications (Highlights)

  • Radar Type: K-band Active Electronically Scanned Array (AESA).

  • Detection Dimensions: 4D (Range, Azimuth, Elevation, Velocity).

  • Detection Range: * Low, slow, and small UAVs: Up to 1.1 km.

    • Pedestrians: Up to 2.2 km.

    • Vehicles: Up to 4 km.

  • Networking: Supports wired/wireless standalone use or self-organizing networks.

  • Coverage: Up to 360° coverage when used in a four-radar configuration.



Advantages

  • High-Precision Positioning: Provides accurate 4D coordinates and velocity data.

  • Low SWaP-C, High Performance: Optimized size, weight, power, and cost without compromising tracking fidelity.

  • Rapid Deployment: Designed for quick setup in diverse operational environments.

  • Easy Integration: Compatible with fixed sites, vehicles, and unmanned platforms.



Applications (Sectors)

  • Events & Stadiums (Airspace security)

  • Infrastructure & Energy (Asset protection)

  • Border Security (Detection of unauthorized drones and vehicles)

  • Airport Security

  • VIP Protection

  • Prison Security (Preventing aerial contraband delivery)
