UHF-Band Datalink

$0.00

Military-Grade Secure Communication System

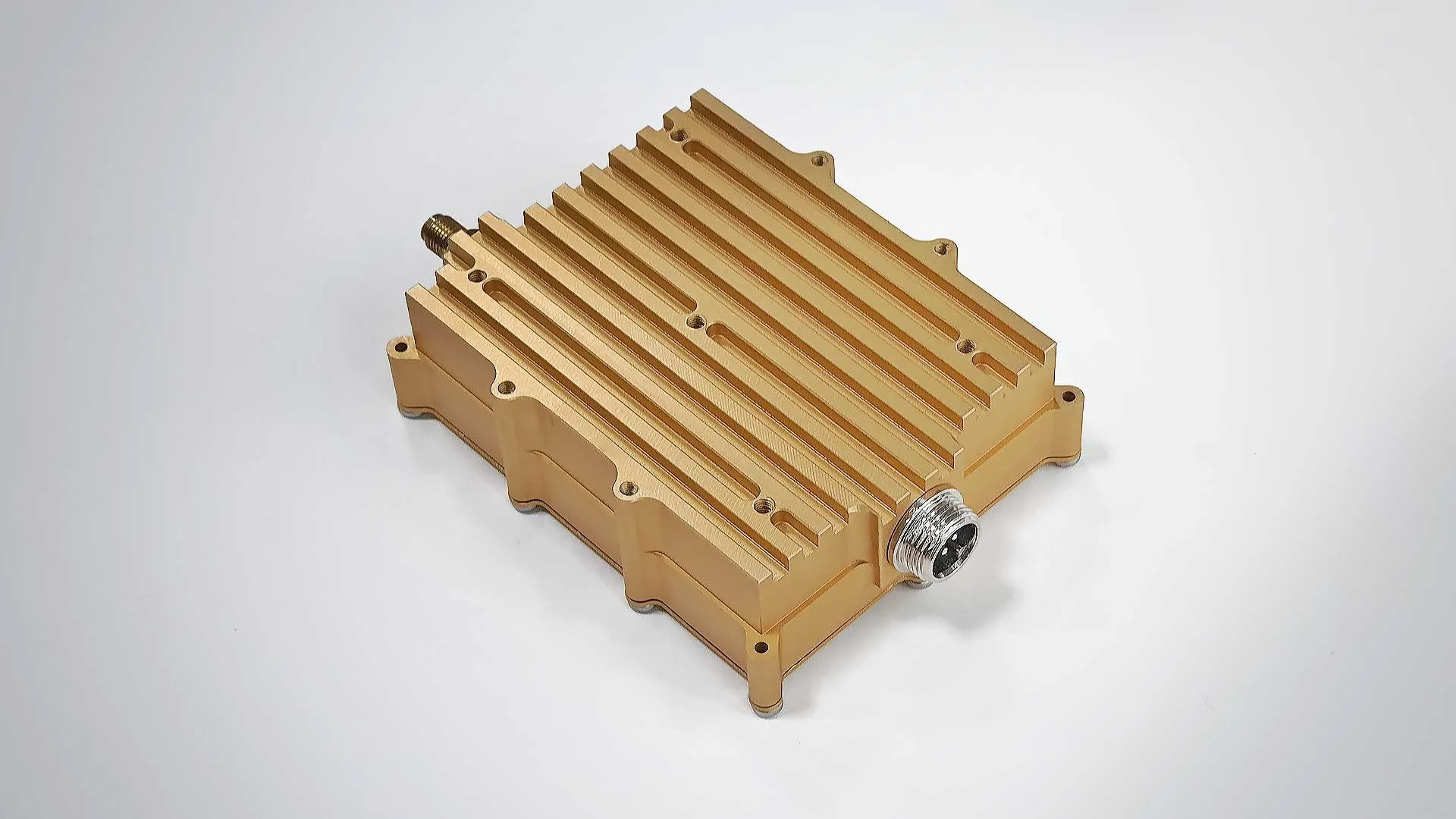

The Uniforce UHF-Band Datalink is a strategic communication and management module designed for single, dual, or multiple military module interactions. It is engineered for the long-range remote control of UAVs, S-UAVs (UCAVs), USVs, and other robotic systems over distances reaching hundreds of kilometers.

The system provides real-time, secure, and uninterrupted dual-sided communication over a wide band. Featuring advanced digital modulation (PSK, QPSK, QAM) and dual-layer AES 128-bit encryption, it ensures high-speed data transfer with minimal latency (less than 80ms). It is an ideal solution for land, sea, and air vehicle guidance and remote management

Military-Grade Secure Communication System

The Uniforce UHF-Band Datalink is a strategic communication and management module designed for single, dual, or multiple military module interactions. It is engineered for the long-range remote control of UAVs, S-UAVs (UCAVs), USVs, and other robotic systems over distances reaching hundreds of kilometers.

The system provides real-time, secure, and uninterrupted dual-sided communication over a wide band. Featuring advanced digital modulation (PSK, QPSK, QAM) and dual-layer AES 128-bit encryption, it ensures high-speed data transfer with minimal latency (less than 80ms). It is an ideal solution for land, sea, and air vehicle guidance and remote management

Key Features

  • Dual-Sided Communication: High-speed bi-directional data flow for real-time control.

  • Advanced Encryption: 128-bit AES data encryption for maximum security in hostile environments.

  • Low Latency: Optimized for strategic operations with a data delay rate of less than 80ms.

  • Strategic Versatility: Suitable for air-to-ground, ground-to-ground, and sea-based control scenarios.

  • Dynamic Modulation: Supports PSK, QPSK, and QAM digital modulation with automatic or manual switching.



Technical Specifications

Model: UNI-U.05

  • Operating Frequency: UHF Band

  • Modulation Type: PSK, QPSK, QAM (Auto or Manual)

  • Bandwidth: 0-30 Mbps / 0-10 MHz (Auto or Manual)

  • RF Output Power: 0 - 5 Watts (Auto or Manual)

  • Interface Protocol: IP-based Ethernet

  • Security: 128-bit AES Data Encryption

  • Data Latency: Max 80ms

  • Antenna Port: SMA

  • Operating Voltage: DC +12-36 V

  • Power Consumption: 5 - 20 Watts

Model: UNI-U.10

  • Operating Frequency: UHF Band

  • Modulation Type: PSK, QPSK, QAM (Auto or Manual)

  • Bandwidth: 0-30 Mbps / 0-10 MHz (Auto or Manual)

  • RF Output Power: 0 - 10 Watts (Auto or Manual)

  • Interface Protocol: IP-based Ethernet

  • Security: 128-bit AES Data Encryption

  • Data Latency: Max 80ms

  • Antenna Port: SMA

  • Operating Voltage: DC +12-36 V

  • Power Consumption: 10 - 30 Watts



Applications

  • Remote control of military and tactical UAVs/UCAVs.

  • Long-distance communication for Unmanned Surface Vehicles (USVs).

  • Inter-module communication between strategic units.

  • Secure IP-based data transmission for tactical field units.
